Capacitor Pptx Physics For Medical Department Pptx Various types of capacitors include paper, ceramic, mica, plastic film, and electrolytic, each with unique properties and applications, such as blocking dc, allowing ac, and filtering unwanted frequencies. Capacitor ppt free download as powerpoint presentation (.ppt), pdf file (.pdf), text file (.txt) or view presentation slides online. the document discusses capacitors, defining them as devices that can store electric charge or potential energy.

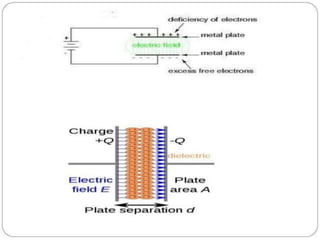

Chapter 6 Pptx Linear Circuit Analysis Capacitor Pptx The capacitor is made of 2 close conductors (usually plates) that are separated by a dielectric material. the plates accumulate electric charge when connected to power source. What is a capacitor? a capacitor can be formed from any ungrounded conductor or pair of conductors. a very common capacitor is made from two parallel plates of metal. charging a capacitor consists of using a battery to move charge onto one of the conductors until the maximum potential of the battery is reached. Capacitors a capacitor is a device which is used to store electrical charge ( a surprisingly useful thing to do in circuits!). effectively, any capacitor consists of a pair of conducting plates separated by an insulator. the insulator is called a dielectric and is often air, paper or oil. Capacitors • in real capacitors we place a material between the metal plates because: • it keeps the metal plates from shorting • it increases the capacitance • it increase the “breakdown voltage”.

Capacitor Types Types Of Capacitors Capacitors a capacitor is a device which is used to store electrical charge ( a surprisingly useful thing to do in circuits!). effectively, any capacitor consists of a pair of conducting plates separated by an insulator. the insulator is called a dielectric and is often air, paper or oil. Capacitors • in real capacitors we place a material between the metal plates because: • it keeps the metal plates from shorting • it increases the capacitance • it increase the “breakdown voltage”. Capacitors are passive components they don't need a power supply to operate. their function is to store electrical charge (and hence energy) and they can store and release this charge over a period of time. Inductor structure, capacitor types, principle of operation, current voltage relationship, power and energy. capacitors series and parallel combinations. inductors series and parallel combinations. reading materials. chapter 6 – transient response for rl and rc circuits . only the following sections: 6.1 the first order circuits. In capacitor circuits, voltages change “slowly”, while currents can be instantaneous. so if this logic gate is driving another gate, when does the next gate think its input is 0 or 1? range of values. 5 combinations of capacitors in real electric circuits capacitors can be connected in various ways. in order to design a circuit with desired capacitance, equivalent capacitance of certain combinations of capacitors can be calculated. there are 2 typical combinations of capacitors parallel combination series combination 6 parallel combination 7.

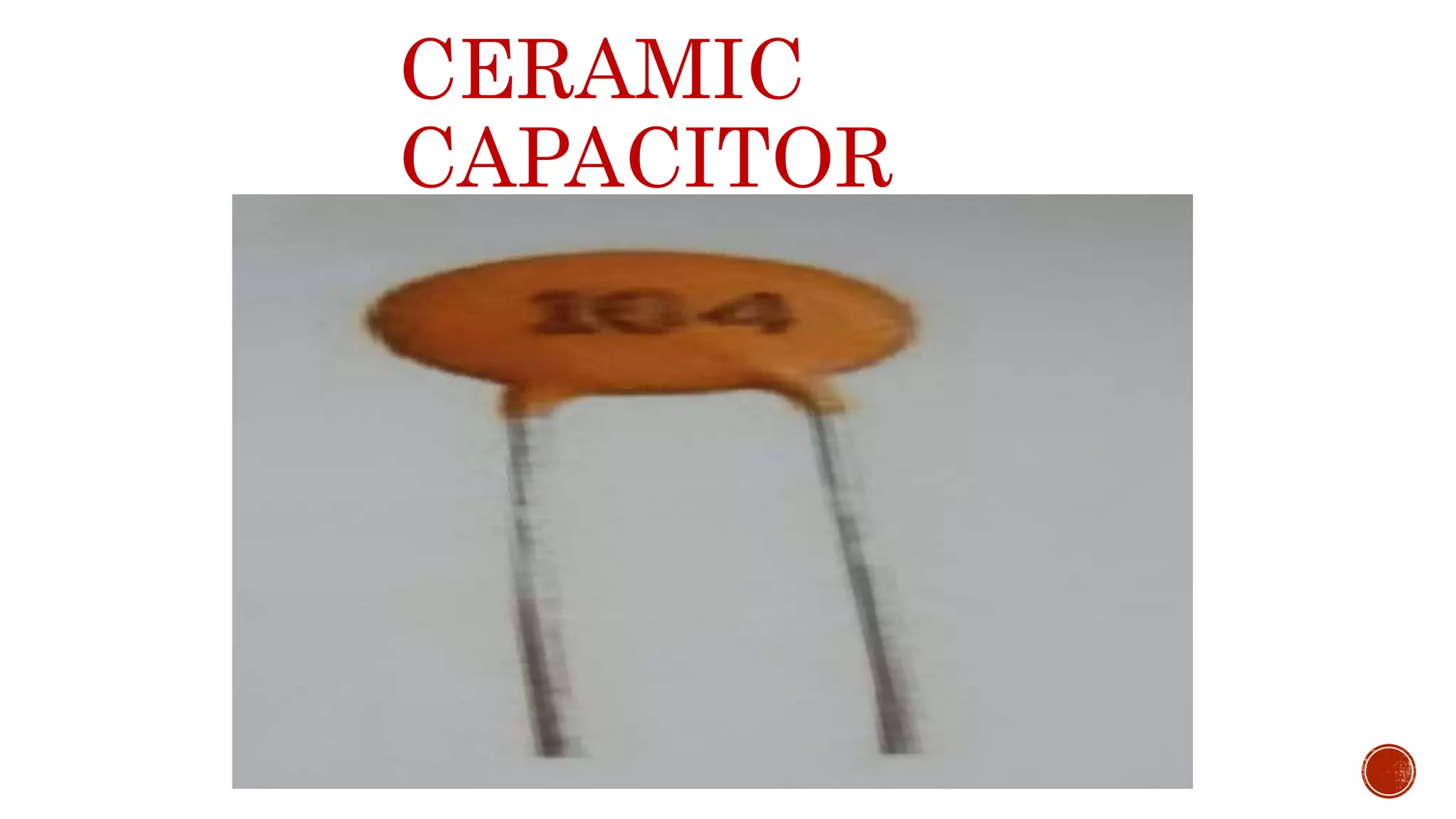

Capacitor And Its Types Pptx Capacitors are passive components they don't need a power supply to operate. their function is to store electrical charge (and hence energy) and they can store and release this charge over a period of time. Inductor structure, capacitor types, principle of operation, current voltage relationship, power and energy. capacitors series and parallel combinations. inductors series and parallel combinations. reading materials. chapter 6 – transient response for rl and rc circuits . only the following sections: 6.1 the first order circuits. In capacitor circuits, voltages change “slowly”, while currents can be instantaneous. so if this logic gate is driving another gate, when does the next gate think its input is 0 or 1? range of values. 5 combinations of capacitors in real electric circuits capacitors can be connected in various ways. in order to design a circuit with desired capacitance, equivalent capacitance of certain combinations of capacitors can be calculated. there are 2 typical combinations of capacitors parallel combination series combination 6 parallel combination 7.

Capacitor And Its Types Pptx In capacitor circuits, voltages change “slowly”, while currents can be instantaneous. so if this logic gate is driving another gate, when does the next gate think its input is 0 or 1? range of values. 5 combinations of capacitors in real electric circuits capacitors can be connected in various ways. in order to design a circuit with desired capacitance, equivalent capacitance of certain combinations of capacitors can be calculated. there are 2 typical combinations of capacitors parallel combination series combination 6 parallel combination 7.
