Buckling Of Beams In Bending Stress The Best Picture Of Beam Before we move into plasticity, we have three elastic loading topics to discuss, and these are still very important and relevant loading states and phenomena: bending, buckling, and torsion respectively. This phenomenon is known as buckling, and it is a very different structural response than in plane compression. when designing columns and beams, buckling could result in a catastrophic failure – imagine the buckling of a bridge's vertical supports.
Buckling Of Beams In Bending Stress The Best Picture Of Beam The simplest and perhaps most important instability from the standpoint of aerospace engineering is the buckling of slender beams or columns under compressive loads. This page will guide you through the basics of buckling, from euler’s formula for predicting the onset of buckling to more complex topics like slenderness ratios and inelastic buckling. The maximum bending moment occurs where the shear force is zero (or changes sign). that is your critical section — the highest stress point in the beam, and the governing section for structural design. the simulator executes all four steps automatically and displays the results in the sfd (green) and bmd (gold) panels. In structural engineering, buckling is the sudden change in shape (deformation) of a structural component under load, such as the bowing of a column under compression or the wrinkling of a plate under shear.
Buckling Of Beams In Bending Stress The Best Picture Of Beam The maximum bending moment occurs where the shear force is zero (or changes sign). that is your critical section — the highest stress point in the beam, and the governing section for structural design. the simulator executes all four steps automatically and displays the results in the sfd (green) and bmd (gold) panels. In structural engineering, buckling is the sudden change in shape (deformation) of a structural component under load, such as the bowing of a column under compression or the wrinkling of a plate under shear. Similar to the behavior of a column (art. 3.41), a beam, although the compressive stresses may be well within the elastic range, can undergo lateral buckling failure. unlike a column, however, the beam is also subjected to tension, which tends to restrain the member from lateral translation. To find the shear force and bending moment over the length of a beam, first solve for the external reactions at each constraint. for example, the cantilever beam below has an applied force shown as a red arrow, and the reactions are shown as blue arrows at the fixed boundary condition. In this chapter, we focus on beams as well as columns that buckle (i.e., structural members having one dimension much greater than the other two and that bend laterally when loaded). Design is based on nominal flexural strength for different failure modes. bending strength is also dependent on lateral support conditions and classified based on beam length. design tables and charts are provided to select beams based on required bending strength and length.

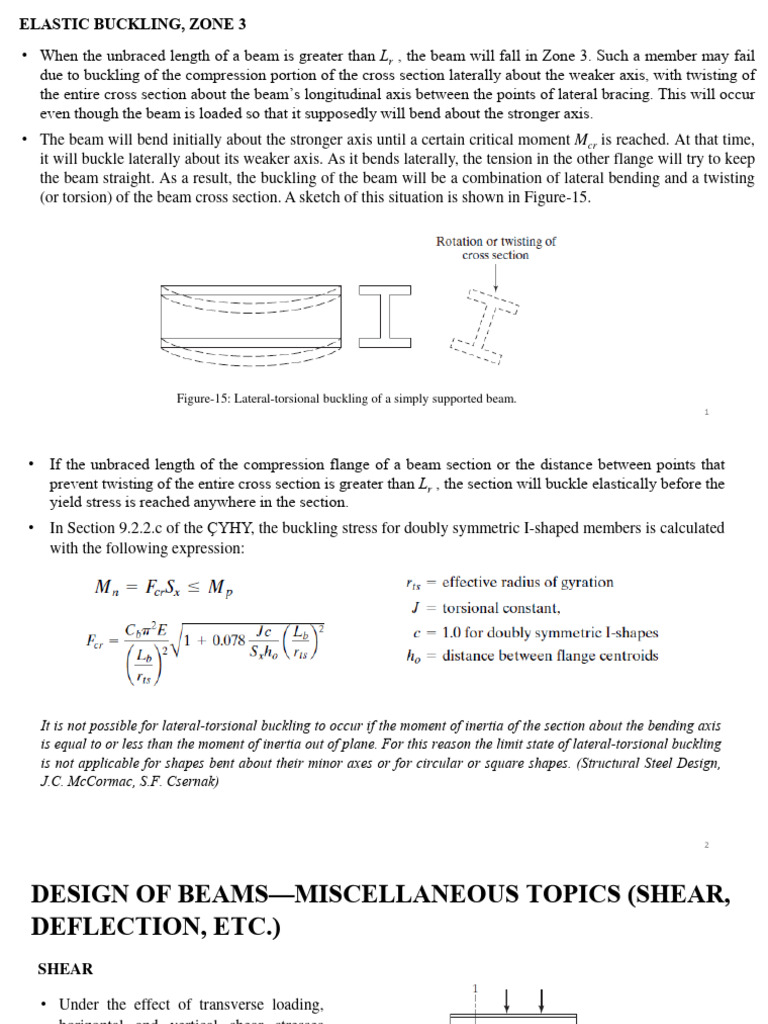

Beams 3 Pdf Beam Structure Buckling Similar to the behavior of a column (art. 3.41), a beam, although the compressive stresses may be well within the elastic range, can undergo lateral buckling failure. unlike a column, however, the beam is also subjected to tension, which tends to restrain the member from lateral translation. To find the shear force and bending moment over the length of a beam, first solve for the external reactions at each constraint. for example, the cantilever beam below has an applied force shown as a red arrow, and the reactions are shown as blue arrows at the fixed boundary condition. In this chapter, we focus on beams as well as columns that buckle (i.e., structural members having one dimension much greater than the other two and that bend laterally when loaded). Design is based on nominal flexural strength for different failure modes. bending strength is also dependent on lateral support conditions and classified based on beam length. design tables and charts are provided to select beams based on required bending strength and length.
Buckling Of Beams In Bending Stress The Best Picture Of Beam In this chapter, we focus on beams as well as columns that buckle (i.e., structural members having one dimension much greater than the other two and that bend laterally when loaded). Design is based on nominal flexural strength for different failure modes. bending strength is also dependent on lateral support conditions and classified based on beam length. design tables and charts are provided to select beams based on required bending strength and length.
