3 Parallel Clippers In these clippers, when the diode is forward biased and conducting, the input signal is visible at the output. it is separated into clippers that are positive and negative. the positive half of the waveform is removed or clipped with a series of positive clippers. This article explains the working of different diode clipper circuits like positive and negative diode clippers, biased clipper circuit, and combinational clipper circuit with the help of circuit diagrams and waveforms.

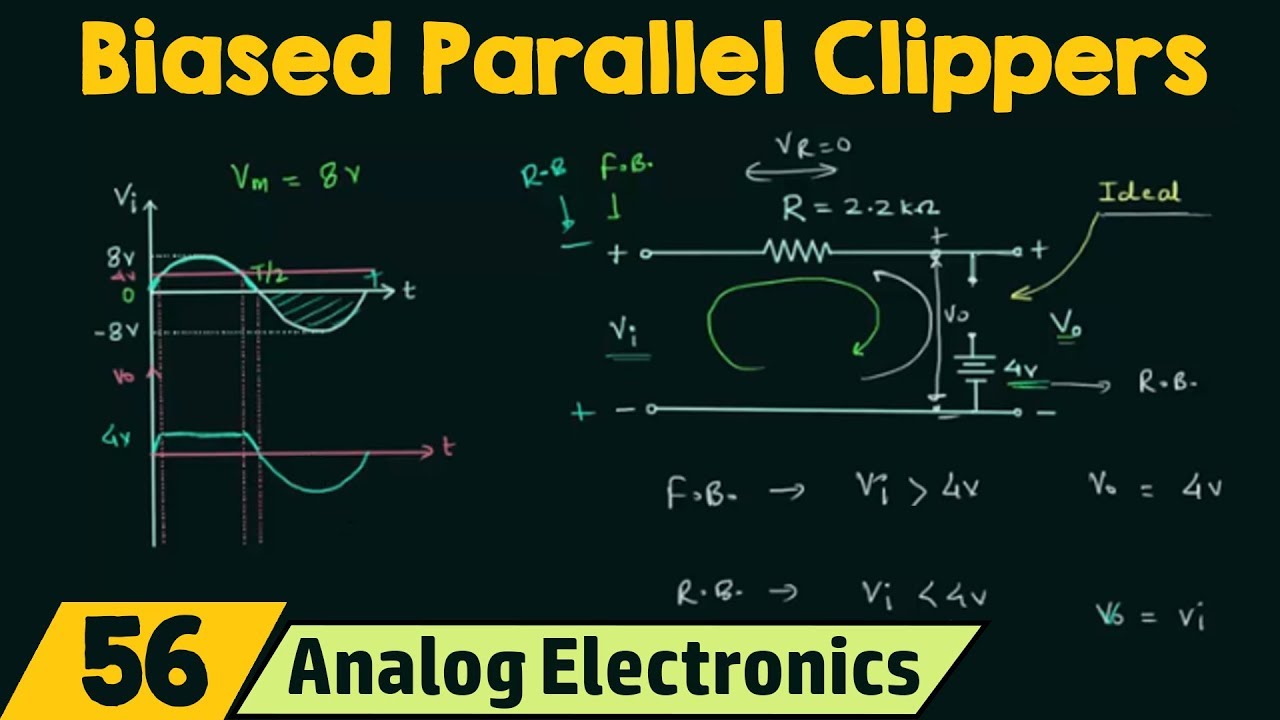

Biased Parallel Clippers Pdf Science Mathematics The dual clippers are made by combining the biased shunt positive clipper and biased shunt negative clipper. let us consider a dual clipper circuit in which a sinusoidal ac voltage is applied to the input terminals of the circuit. The advantage of biased diode clipping circuits is that it prevents the output signal from exceeding preset voltage limits for both half cycles of the input waveform, which could be an input from a noisy sensor or the positive and negative supply rails of a power supply. In a biased clipper, we add a dc bias so the diode will conduct only after the input reaches (or goes below) that bias level. that’s how we “shift” the clipping point up or down. A bipolar or dual polarity clipper can be created by combining the positive and negative clippers. it is possible to limit the positive and negative swings independently, as illustrated in the following example.

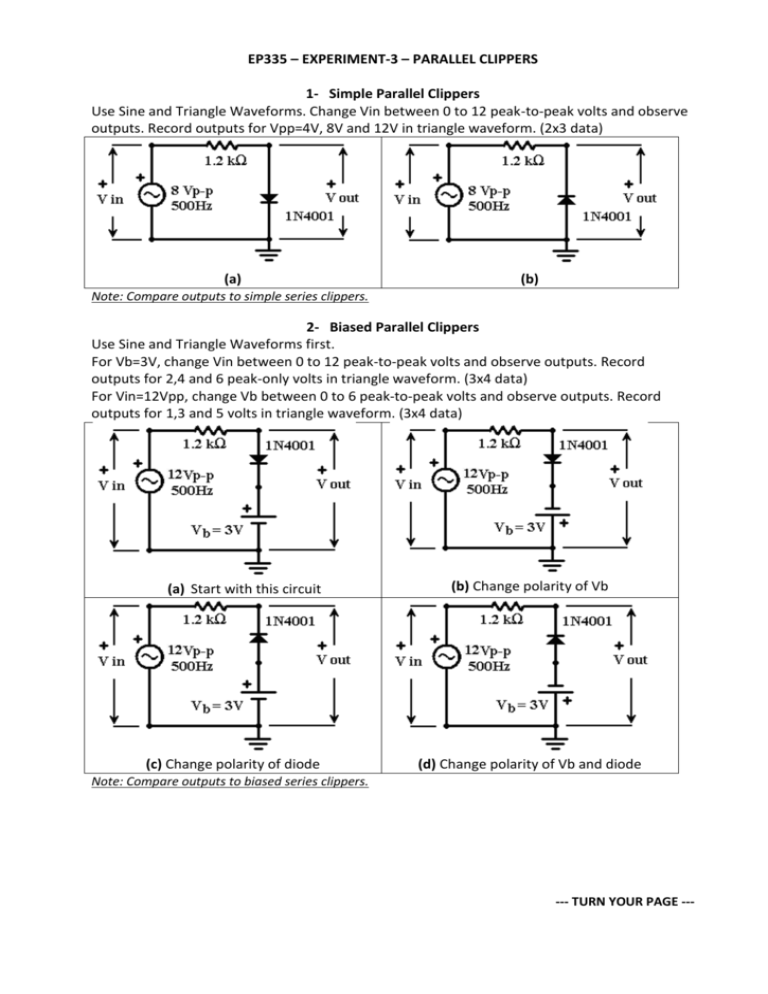

Solved Exercises 1 Design Biased Parallel Clippers With Chegg In a biased clipper, we add a dc bias so the diode will conduct only after the input reaches (or goes below) that bias level. that’s how we “shift” the clipping point up or down. A bipolar or dual polarity clipper can be created by combining the positive and negative clippers. it is possible to limit the positive and negative swings independently, as illustrated in the following example. Fig. 3 10: biased parallel negative clipper circuit. when the input signal vi is positive (0 to 10 v), the diode is reverse biased (open circuit), then vo is determined by the voltage divider formed by r1 and the load resistor rl, as follows:. It describes six circuit configurations for positive and negative parallel clippers with no bias, positive bias, negative bias, and double bias. diagrams show the input and output waveforms for each circuit, illustrating how the diodes clip portions of the signal to produce a limited output. This article explores various diode based clipper circuits, including series, shunt, and biased clipper circuits, emphasizing their functional roles in shaping and adjusting waveforms. This article explains the working of different diode clipper circuits like positive and negative diode clippers, biased clipper circuit, and combinational clipper circuit with the help of circuit diagrams and waveforms.
Ppt Parallel Clippers Powerpoint Presentation Free Download Id 1430303 Fig. 3 10: biased parallel negative clipper circuit. when the input signal vi is positive (0 to 10 v), the diode is reverse biased (open circuit), then vo is determined by the voltage divider formed by r1 and the load resistor rl, as follows:. It describes six circuit configurations for positive and negative parallel clippers with no bias, positive bias, negative bias, and double bias. diagrams show the input and output waveforms for each circuit, illustrating how the diodes clip portions of the signal to produce a limited output. This article explores various diode based clipper circuits, including series, shunt, and biased clipper circuits, emphasizing their functional roles in shaping and adjusting waveforms. This article explains the working of different diode clipper circuits like positive and negative diode clippers, biased clipper circuit, and combinational clipper circuit with the help of circuit diagrams and waveforms.
Ppt Parallel Clippers Powerpoint Presentation Free Download Id 1430303 This article explores various diode based clipper circuits, including series, shunt, and biased clipper circuits, emphasizing their functional roles in shaping and adjusting waveforms. This article explains the working of different diode clipper circuits like positive and negative diode clippers, biased clipper circuit, and combinational clipper circuit with the help of circuit diagrams and waveforms.
