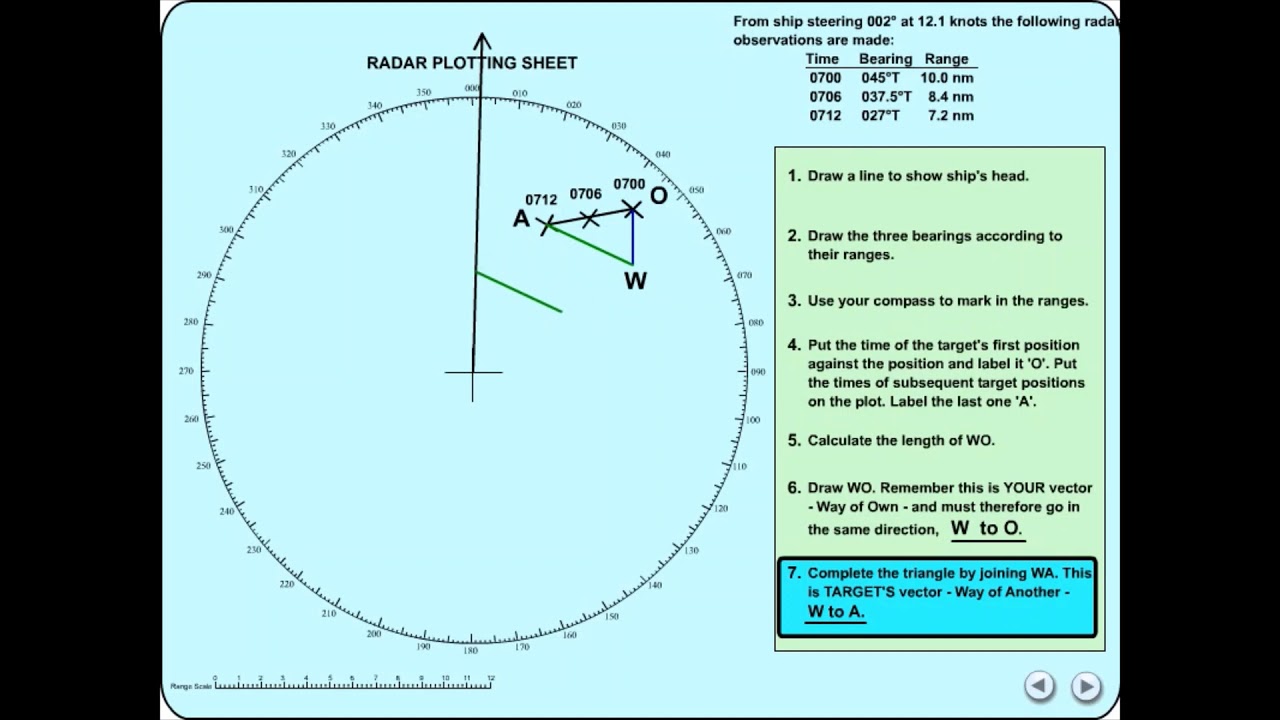

Basic Radar Plotting Pdf This video shows the basics of radar plotting using an example. the video teaches the viewer how to calculate the cpa, tcpa, course, speed, and aspect of the target from drawing a radar. The application of simple geometry on a plotting sheet, a paper record of the radar display (ppi) over an interval of time, will enable you to determine the collision risk and safe action.
Radar Plotting Sheet Pdf Make basic radar plot (oaw triangle) determine the amount you are going to alter your course. wo represents the course you are presently steering. let us assume you are going to alter 30° to starboard. draw a line from w to represent the new course (30 ° to stbd). It explains how to perform a basic radar plot and calculate values. it also outlines how to adjust plots and calculations if a ship changes course, speed, or both. formulas and step by step instructions are provided for common radar plotting scenarios. In general, an increase in gain is accompanied by a decrease in beamwidth, and is achieved by increasing the antenna size relative to the wavelength. with regard to radar, high gain and narrow beams are desirable for long detection and tracking ranges and accurate direction measurement. There are plenty of texts on how radar works and how to operate it. this guide has been stripped down to the most basic information necessary to do a plot and still cover it.
Radar Plotting Sheet Pdf Radar Microwave Technology In general, an increase in gain is accompanied by a decrease in beamwidth, and is achieved by increasing the antenna size relative to the wavelength. with regard to radar, high gain and narrow beams are desirable for long detection and tracking ranges and accurate direction measurement. There are plenty of texts on how radar works and how to operate it. this guide has been stripped down to the most basic information necessary to do a plot and still cover it. Radar plotting used to be referred to as rapid radar plotting, with an emphasis on "rapid." in order to make the procedure quick and mathematically painless, contacts are usually observed at intervals of 6 minutes, 12 minutes or 15 minutes. Radar plotting is defined as the process by which a radar system tracks a target over time, utilizing specific parameters to select and monitor targets based on their movement and size, and estimating their direction, speed, and potential collision risks with other vessels. Radar plotting simplified | step by step radar plotting tutorial for deck cadets & marine officers** are you preparing for your maritime exams or looking to master radar plotting. This does not teach you anything other than the basics of radar plotting (and plotting on a maneuvering board). there are plenty of texts on how radar works and how to operate it.
Radar Plotting Sheet Pdf Radar plotting used to be referred to as rapid radar plotting, with an emphasis on "rapid." in order to make the procedure quick and mathematically painless, contacts are usually observed at intervals of 6 minutes, 12 minutes or 15 minutes. Radar plotting is defined as the process by which a radar system tracks a target over time, utilizing specific parameters to select and monitor targets based on their movement and size, and estimating their direction, speed, and potential collision risks with other vessels. Radar plotting simplified | step by step radar plotting tutorial for deck cadets & marine officers** are you preparing for your maritime exams or looking to master radar plotting. This does not teach you anything other than the basics of radar plotting (and plotting on a maneuvering board). there are plenty of texts on how radar works and how to operate it.
