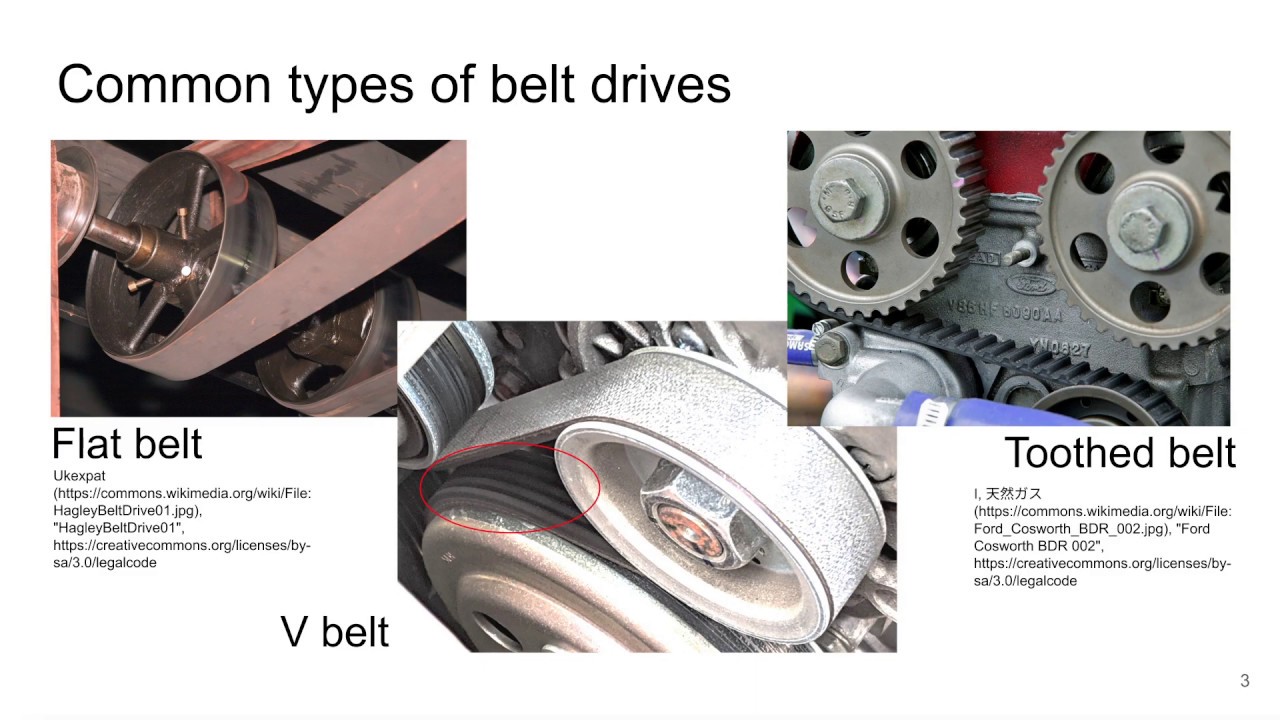

Belt Drives Basics Pdf Belt Mechanical Mechanical Engineering The document discusses different types of belt drives used to transmit power between rotating shafts including flat belts, v belts, synchronous belts, link belts, and round belts. it describes the basic operation and advantages of each type. Lecture presentation on belt drives, contact angle geometry, and drive kinematics.
Timing Belt Theory Pdf Belt Mechanical Friction V belt drive design process rated power of the driving motor prime mover. service factor based on type of driver and driven load. center distance (adjustment for center distance must be provided or use idler pulley) power rating for one belt as a function of size and speed of the smaller pulley. What is belt drive • the belts or ropes are used to transmit power from one shaft to another by means of pulleys which rotate at the same speed or at different speeds. Belt drives operate on the principle of friction between the belt and the pulleys. the belt, typically made of flexible material such as rubber or synthetic compounds, wraps around the pulleys, creating a frictional grip that allows for the transmission of power. How does belt drives work? basically, belt drives are equipped with two pulleys on which the belt is attached. the rotary motion or mechanical power is transmitted from the driving pulley to the driven one. this occurs due to the frictional grip present in between the pulley surface and the belt.
Belt And Chain Drives Pdf Belt Mechanical Friction Belt drives operate on the principle of friction between the belt and the pulleys. the belt, typically made of flexible material such as rubber or synthetic compounds, wraps around the pulleys, creating a frictional grip that allows for the transmission of power. How does belt drives work? basically, belt drives are equipped with two pulleys on which the belt is attached. the rotary motion or mechanical power is transmitted from the driving pulley to the driven one. this occurs due to the frictional grip present in between the pulley surface and the belt. In belt drives, power is transmitted between at least two pulleys by a belt. one pulley drives the belt (driving pulley) and the other pulley is driven by the belt (driven pulley). Belt and chain drives are two common mechanical drives. while belts derive their driving force from friction between belt and pulley surfaces, chains have links which interfere with teeth on sprocket and thus develop the driving tension. Belt drives are a type of frictional drive used for transmitting powers from one shaft to another using pulleys that rotate at the same speed or a different speed. a belt drive is shown in the figure. it consists of two pulleys over which an endless belt passes over them. Crossed belt drive: this type of belt drives, the belt is employing when twoparallel shafts have to rotate in the opposite direction. at the junction where thebelts cross, it rubs against itself and wears off.
Chapter 05 Belt Drives Pdf Belt Mechanical Mechanical Engineering In belt drives, power is transmitted between at least two pulleys by a belt. one pulley drives the belt (driving pulley) and the other pulley is driven by the belt (driven pulley). Belt and chain drives are two common mechanical drives. while belts derive their driving force from friction between belt and pulley surfaces, chains have links which interfere with teeth on sprocket and thus develop the driving tension. Belt drives are a type of frictional drive used for transmitting powers from one shaft to another using pulleys that rotate at the same speed or a different speed. a belt drive is shown in the figure. it consists of two pulleys over which an endless belt passes over them. Crossed belt drive: this type of belt drives, the belt is employing when twoparallel shafts have to rotate in the opposite direction. at the junction where thebelts cross, it rubs against itself and wears off.
Belt And Chain Drives Pdf Belt Mechanical Mechanical Engineering Belt drives are a type of frictional drive used for transmitting powers from one shaft to another using pulleys that rotate at the same speed or a different speed. a belt drive is shown in the figure. it consists of two pulleys over which an endless belt passes over them. Crossed belt drive: this type of belt drives, the belt is employing when twoparallel shafts have to rotate in the opposite direction. at the junction where thebelts cross, it rubs against itself and wears off.
