Truck Air System Diagram Air Brake Brake System Brake 60 Off In this article, you’ll learn what is air brake system? its diagram, parts, working, advantages, and applications with pictures & pdf. Discover a simple air brake system diagram to understand how air brakes work in vehicles.

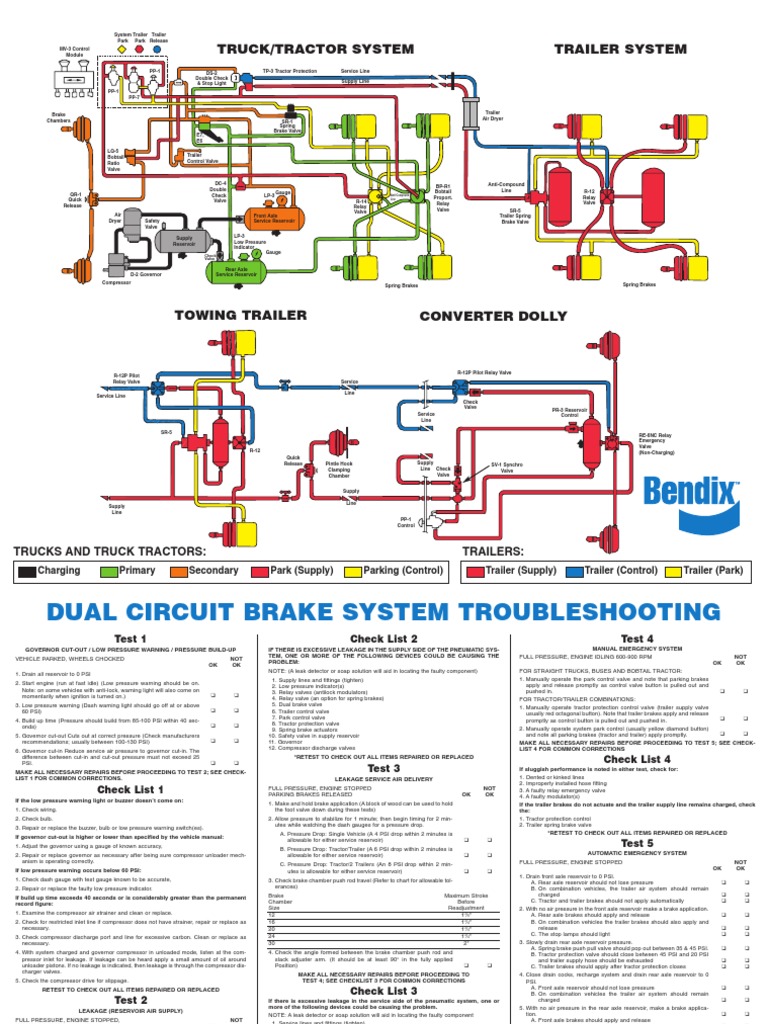

Truck Air System Diagram Air Brake Brake System Brake 60 Off Welcome to total truck parts! typical 6 wheel air brake system. these diagrams are provided for basic identification only. always consult a professional technician to properly troubleshoot your system. typical 10 wheel brake system. these diagrams are provided for basic identification only. Air is pumped by the compressor to the reservoir. when air pressure reaches 120 to 145 psi (828 to 1,000 kpa), the governor places the compressor into its unloaded stage. at this stage the air system is fully charged (fig. 14). figure 14. basic air brake system. Fig 1: air braking system. an air brake system, also known as a compressed air brake system, functions as a friction brake in vehicles, employing compressed air on a piston to exert the necessary pressure on brake pads for vehicle cessation. Learn the working principles of a simple air brake system with a clear and concise diagram. understand the components and their functions for a better comprehension of air brake systems.
Basic Air Brake System Diagram Fig 1: air braking system. an air brake system, also known as a compressed air brake system, functions as a friction brake in vehicles, employing compressed air on a piston to exert the necessary pressure on brake pads for vehicle cessation. Learn the working principles of a simple air brake system with a clear and concise diagram. understand the components and their functions for a better comprehension of air brake systems. Student will be able to develop a simple air brake system consisting of a compressor, reservoir, brake valve, steer axle and single drive axle brake chambers and connecting lines. Air brake system diagram free download as pdf file (.pdf), text file (.txt) or view presentation slides online. pressure control check valve s will not permit air to purge air dryer. check that one way check has been removed. Air brake system diagram: detailed explanation of components, working principles, and connections in air braking systems for vehicles and machinery. Air is pumped by the compressor (1) to the reservoir (2), which is protected from over pressurization by a safety valve (3). the governor (5) controls the pressure in the reservoir by governing the compressor. air is available from the reservoir to the bottom of the foot valve (6).
Basic Air Brake System Diagram Student will be able to develop a simple air brake system consisting of a compressor, reservoir, brake valve, steer axle and single drive axle brake chambers and connecting lines. Air brake system diagram free download as pdf file (.pdf), text file (.txt) or view presentation slides online. pressure control check valve s will not permit air to purge air dryer. check that one way check has been removed. Air brake system diagram: detailed explanation of components, working principles, and connections in air braking systems for vehicles and machinery. Air is pumped by the compressor (1) to the reservoir (2), which is protected from over pressurization by a safety valve (3). the governor (5) controls the pressure in the reservoir by governing the compressor. air is available from the reservoir to the bottom of the foot valve (6).
Air Brake System Diagram Air brake system diagram: detailed explanation of components, working principles, and connections in air braking systems for vehicles and machinery. Air is pumped by the compressor (1) to the reservoir (2), which is protected from over pressurization by a safety valve (3). the governor (5) controls the pressure in the reservoir by governing the compressor. air is available from the reservoir to the bottom of the foot valve (6).
