Autodesk Revit Create A Fill Pattern Revit News Fill patterns control the appearance of surfaces that are cut or shown in projection. use the fill patterns tool to create or modify drafting and model patterns. In this video, you will learn how to add new material patterns into your revit. i will show you how you can easily download and add these patterns. more.

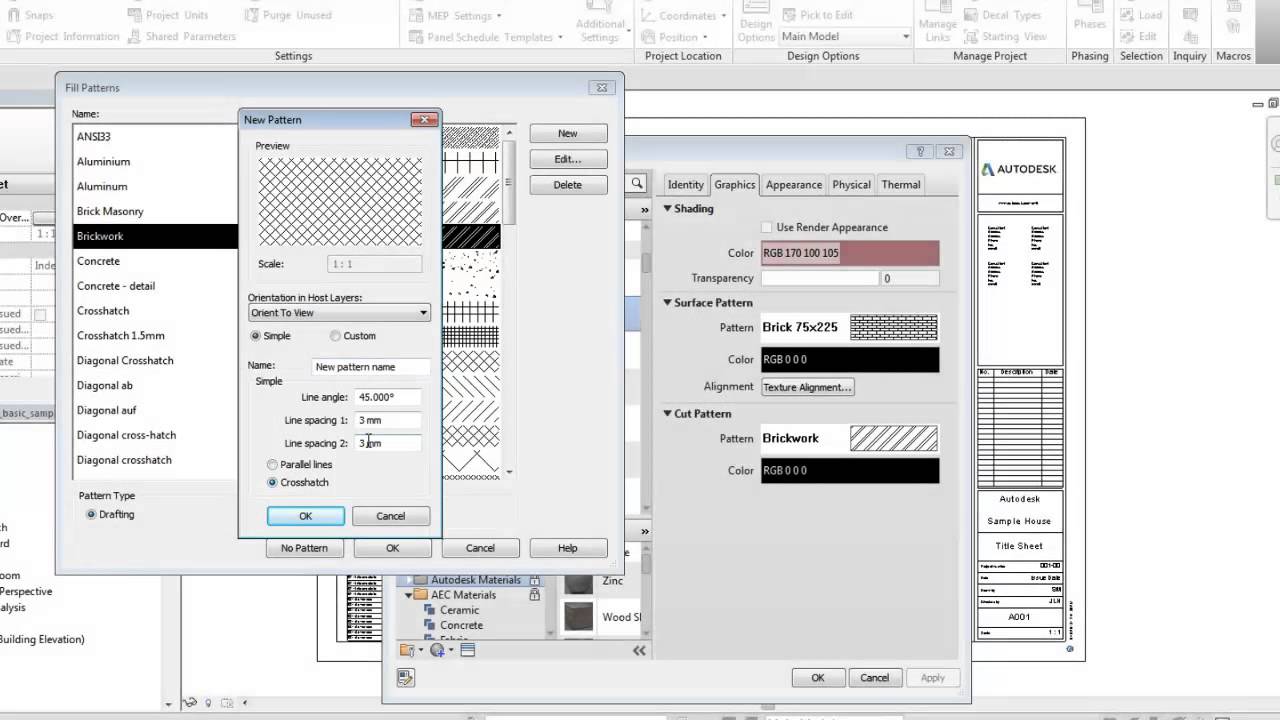

Autodesk Revit Create A Fill Pattern Revit News Revit’s flexibility allows users to apply fill patterns to a variety of design elements, including walls, floors, and materials. here’s a step by step guide to using them:. Creating directly in revit – the fill pattern editor allows you to define simple line based patterns within the software. you can control line angle, spacing, and orientation, which is effective for straightforward grids like brick bonds or ceiling tiles. Fill pattern creation and modification can be accessed via the manage tab>additional settings panel. selecting fill patterns allow users to modify an existing pattern or create a new one from scratch. the image below shows the creation of a basic model fill pattern called floor tiles. When creating patterns, you can choose from 2 options: basic pattern or custom pattern. when creating the pattern, you will need to decide if the pattern needs to be a drafting or model pattern.

Fill Pattern Autodesk Community Fill pattern creation and modification can be accessed via the manage tab>additional settings panel. selecting fill patterns allow users to modify an existing pattern or create a new one from scratch. the image below shows the creation of a basic model fill pattern called floor tiles. When creating patterns, you can choose from 2 options: basic pattern or custom pattern. when creating the pattern, you will need to decide if the pattern needs to be a drafting or model pattern. To define a new fill pattern, you can open a fill pattern dialog through the material browser. the same dialog box can also be opened from the manage tab, additional settings drop down, fill patterns. fill patterns are defined as either drafting patterns or model patterns. Revit provides some limited functionality to create basic fill patterns. a basic fill pattern consists of a series of parallel or orthogonal lines; examples include diagonal crosshatch or vertical siding. in the fill patterns dialog, under pattern type, select drafting or model. Some settings (such as materials and filled regions, but not walls ' coarse scale fill patterns) allow for separate foreground and background patterns. when upgrading, the previous single pattern becomes "foreground". Here is one that has not received much attention, fill pattern. with the release of revit 2023, autodesk has provided the ability to control the foreground pattern of fill patterns with a parameter.

Solved How To Create A Custom Fill Pattern In Revit Autodesk Community To define a new fill pattern, you can open a fill pattern dialog through the material browser. the same dialog box can also be opened from the manage tab, additional settings drop down, fill patterns. fill patterns are defined as either drafting patterns or model patterns. Revit provides some limited functionality to create basic fill patterns. a basic fill pattern consists of a series of parallel or orthogonal lines; examples include diagonal crosshatch or vertical siding. in the fill patterns dialog, under pattern type, select drafting or model. Some settings (such as materials and filled regions, but not walls ' coarse scale fill patterns) allow for separate foreground and background patterns. when upgrading, the previous single pattern becomes "foreground". Here is one that has not received much attention, fill pattern. with the release of revit 2023, autodesk has provided the ability to control the foreground pattern of fill patterns with a parameter.

Solved How To Create A Custom Fill Pattern In Revit Autodesk Community Some settings (such as materials and filled regions, but not walls ' coarse scale fill patterns) allow for separate foreground and background patterns. when upgrading, the previous single pattern becomes "foreground". Here is one that has not received much attention, fill pattern. with the release of revit 2023, autodesk has provided the ability to control the foreground pattern of fill patterns with a parameter.
