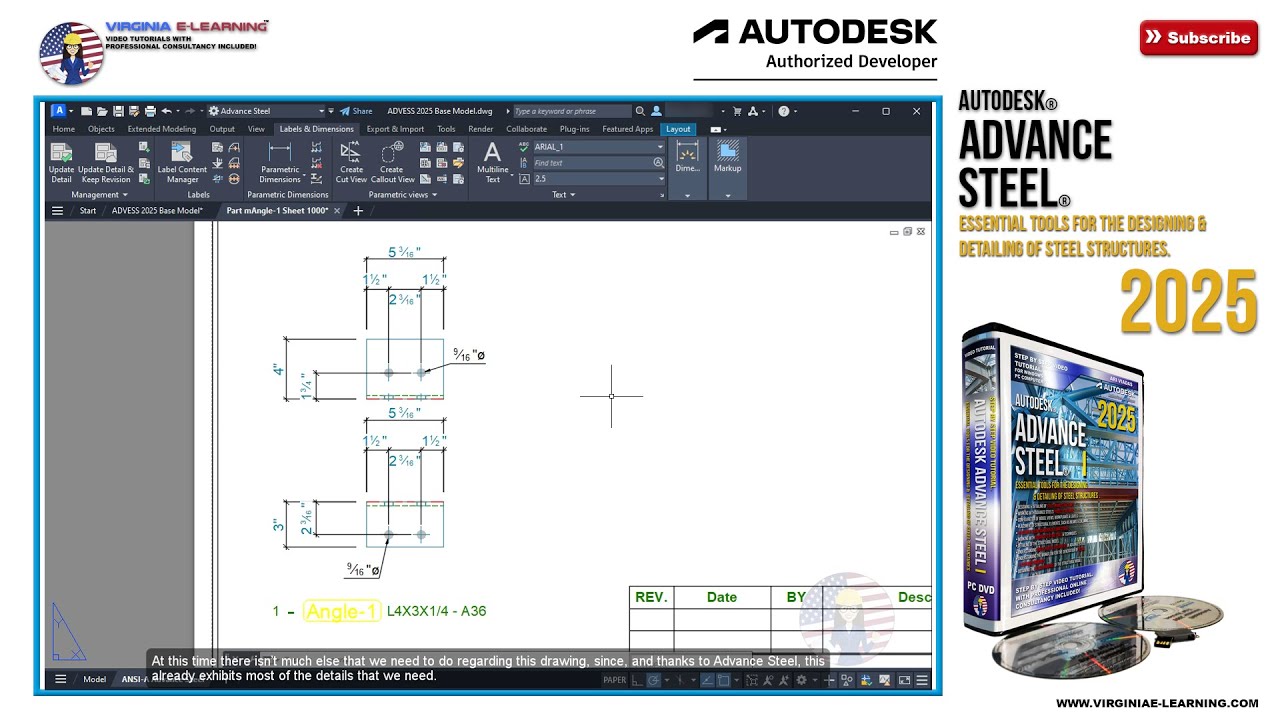

Autodesk Advance Steel 2025 Tutorial Single Part Drawings Autodesk Understanding the concept of prototypes in advance steel. obtaining the detail drawings of the structural model. includes support for all tools and topics covered during this course. Autodesk advance steel 2025 essentials. essential tools for the designing & detailing of steel structures. 👉 get this full course at:.
Drawings In Advance Steel Autodesk Community Autodesk advance steel 2025 tutorial | single part drawings. lnkd.in ejjuvm y #autodesk #advancesteel #steelframing #steeldetailing #structuralengineering #civilengineering. It includes tutorials, real world examples, and resources for both students and educators, covering various aspects of steel detailing and bim interoperability with autodesk revit. Create shop drawings with advance steel create shop drawings—for both single parts and assemblies—automatically in advance steel. At first, all single parts and assemblies should be automatically numbered using the advance steel numbering tool. an assembly consists of a main part and an attached part. for the given structure, the column is the main part of an assembly and the tie beam becomes the main part of another assembly.

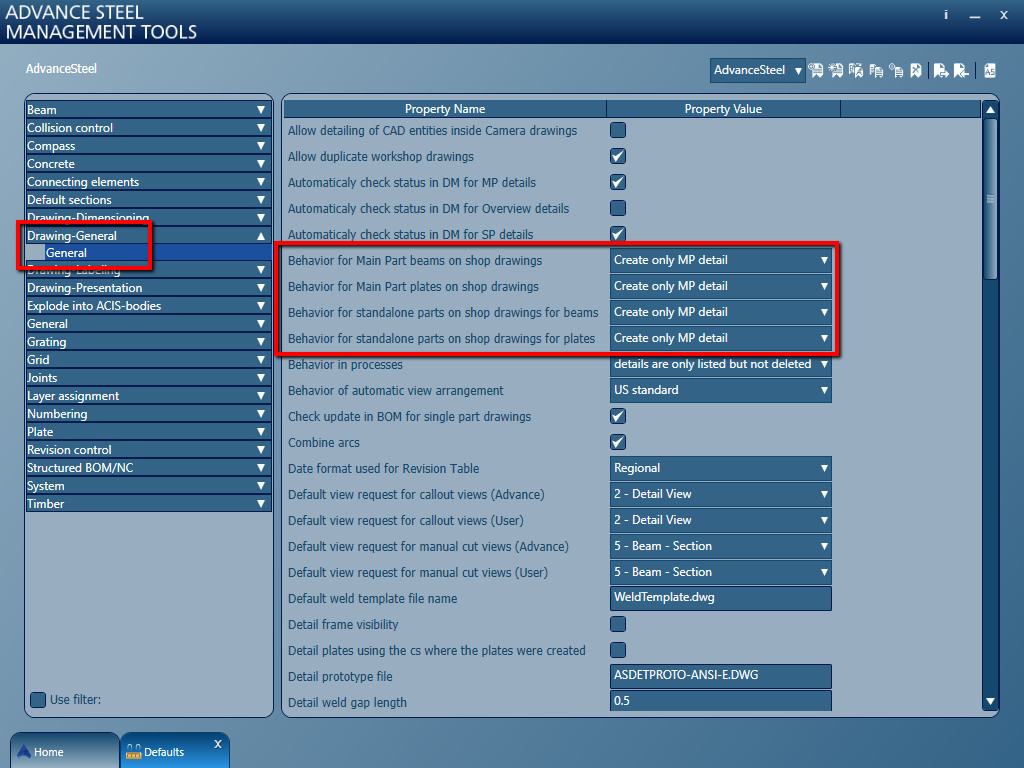

Cannot Generate Single Part Drawings For Main Parts With Advance Steel Create shop drawings with advance steel create shop drawings—for both single parts and assemblies—automatically in advance steel. At first, all single parts and assemblies should be automatically numbered using the advance steel numbering tool. an assembly consists of a main part and an attached part. for the given structure, the column is the main part of an assembly and the tie beam becomes the main part of another assembly. To create the single part drawing, perform the following steps: select an overview drawing style, which uses selection, and create a 3d view for the special part, on a prototype which will give you enough space for the 2d blocks you will copy later. Autodesk advance steel 2025 tutorial | single part drawings. watch?v= sqoxkso2y #steelframing #civilengeering #steelframe. Advance steel features libraries of parametric uk standard steel connections, structural elements & plates, the ability to generate workshop & ga drawings, bill of materials, and nc files. How do we create the single part drawing for this as an assembly? if you could outline the process to follow, that'd be magic, as i've 100's of purlins and don't particularly want to process each individually.
Autodesk Advance Steel 2025 Tutorial Essentials Autodesk Advance To create the single part drawing, perform the following steps: select an overview drawing style, which uses selection, and create a 3d view for the special part, on a prototype which will give you enough space for the 2d blocks you will copy later. Autodesk advance steel 2025 tutorial | single part drawings. watch?v= sqoxkso2y #steelframing #civilengeering #steelframe. Advance steel features libraries of parametric uk standard steel connections, structural elements & plates, the ability to generate workshop & ga drawings, bill of materials, and nc files. How do we create the single part drawing for this as an assembly? if you could outline the process to follow, that'd be magic, as i've 100's of purlins and don't particularly want to process each individually.
Advance Steel 2025 Autodesk Community Advance steel features libraries of parametric uk standard steel connections, structural elements & plates, the ability to generate workshop & ga drawings, bill of materials, and nc files. How do we create the single part drawing for this as an assembly? if you could outline the process to follow, that'd be magic, as i've 100's of purlins and don't particularly want to process each individually.
