Autocad Align Command Align Command Without Scaling Align Command In this quick and simple autocad tutorial, you’ll discover how to use the align command to precisely move, rotate, and scale objects by aligning them to a reference. Video transcript 00:04 the align command in autocad allows you 00:07 to align objects to other objects where typically 00:10 you would have to use a combination of different commands such as move and rotate 00:16 to be able to accomplish the same objective.

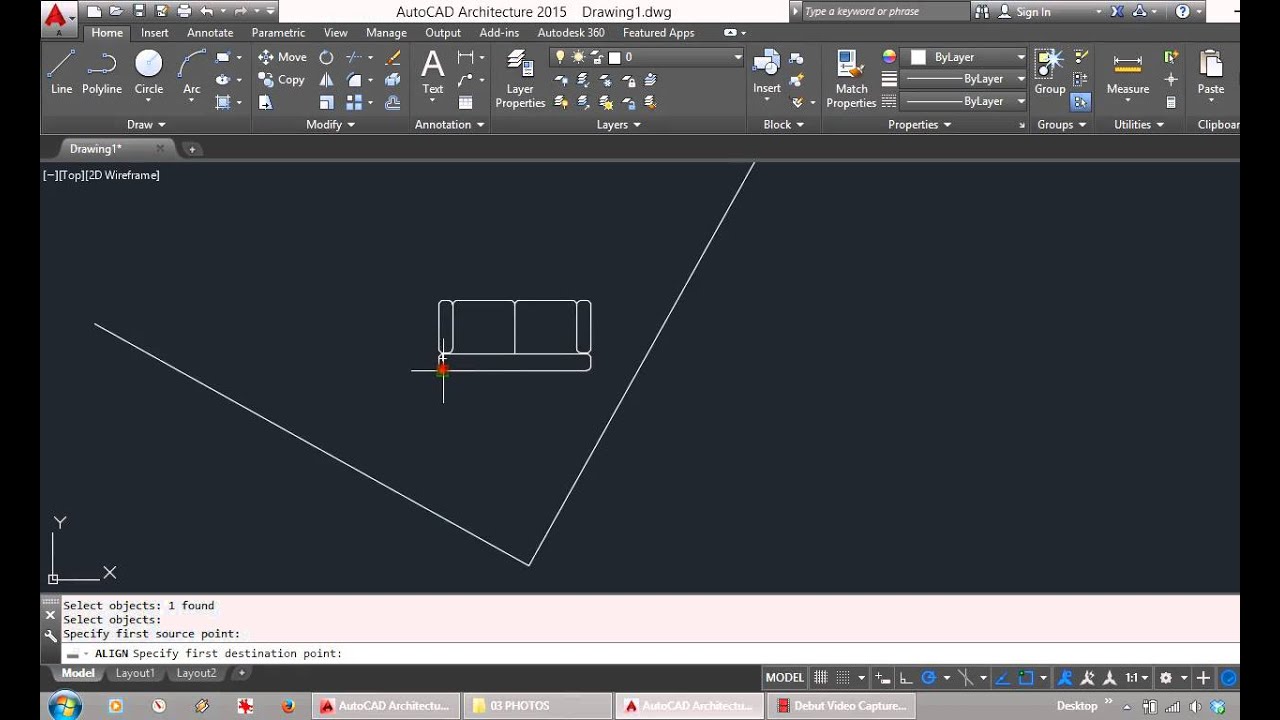

Align Command In Autocad Architect Youtube Architecture Autocad The align command in autocad lets you move, rotate, and (optionally) scale selected objects so they match one or more points on a target object or coordinate. it works in both 2d and 3d and is ideal when you need to precisely place an object relative to another object or coordinate system. In this comprehensive guide, we will explore the ins and outs of the align command in autocad, providing step by step instructions, tips, and advanced techniques to help you align objects with ease. In this article i will show you the step by step method of using align command in autocad to align one object with respect to another. Use the align command (al shortcut) to align text relative to other objects or points in your drawing. select the text you want to align and specify points or objects to align it with.

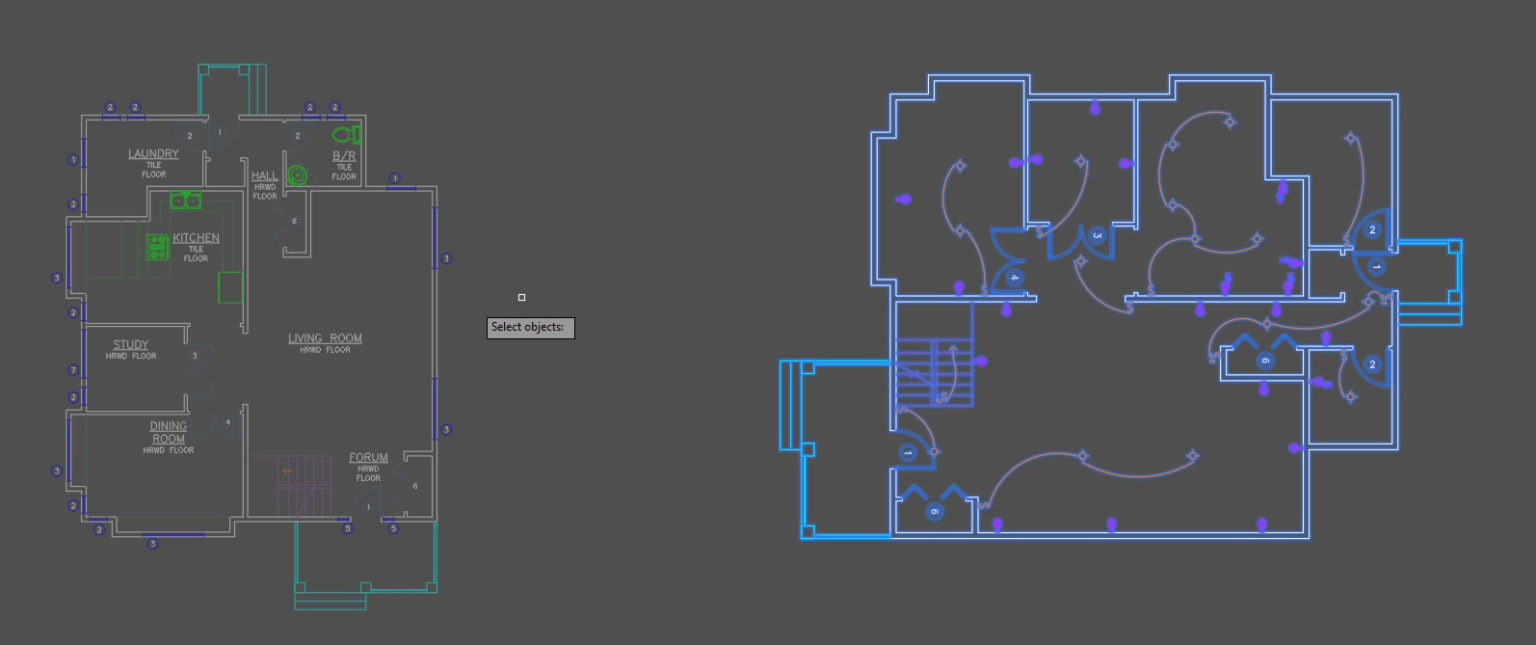

Staying Aligned Using The Align Command Tuesday Tips With Brandon In this article i will show you the step by step method of using align command in autocad to align one object with respect to another. Use the align command (al shortcut) to align text relative to other objects or points in your drawing. select the text you want to align and specify points or objects to align it with. Aligns objects with other objects in 2d and 3d. notein autocad lt, this command is available only from the command line. summary either one, two, or three pairs of source points and definition points can be specified to move, rotate, or tilt the selected objects, aligning them with points on another object. specify either one, two, or three pairs of source points and definition points to align. This tutorial demonstrates the use of the align command, allowing users to easily align one object with another. In this tutorial, engineer ibrahim omer is here to help you learn an important tool in autocad called the align command. this tool can save you time and make your work more precise. in the first example, we'll show you how to move an object horizontally to match another one without changing its size. It allows users to align objects in a manner that combines movement with rotation, ensuring that designs maintain their intended geometry and layout. this guide provides detailed steps on how to effectively use the align command.
Staying Aligned Using The Align Command Tuesday Tips With Brandon Aligns objects with other objects in 2d and 3d. notein autocad lt, this command is available only from the command line. summary either one, two, or three pairs of source points and definition points can be specified to move, rotate, or tilt the selected objects, aligning them with points on another object. specify either one, two, or three pairs of source points and definition points to align. This tutorial demonstrates the use of the align command, allowing users to easily align one object with another. In this tutorial, engineer ibrahim omer is here to help you learn an important tool in autocad called the align command. this tool can save you time and make your work more precise. in the first example, we'll show you how to move an object horizontally to match another one without changing its size. It allows users to align objects in a manner that combines movement with rotation, ensuring that designs maintain their intended geometry and layout. this guide provides detailed steps on how to effectively use the align command.
