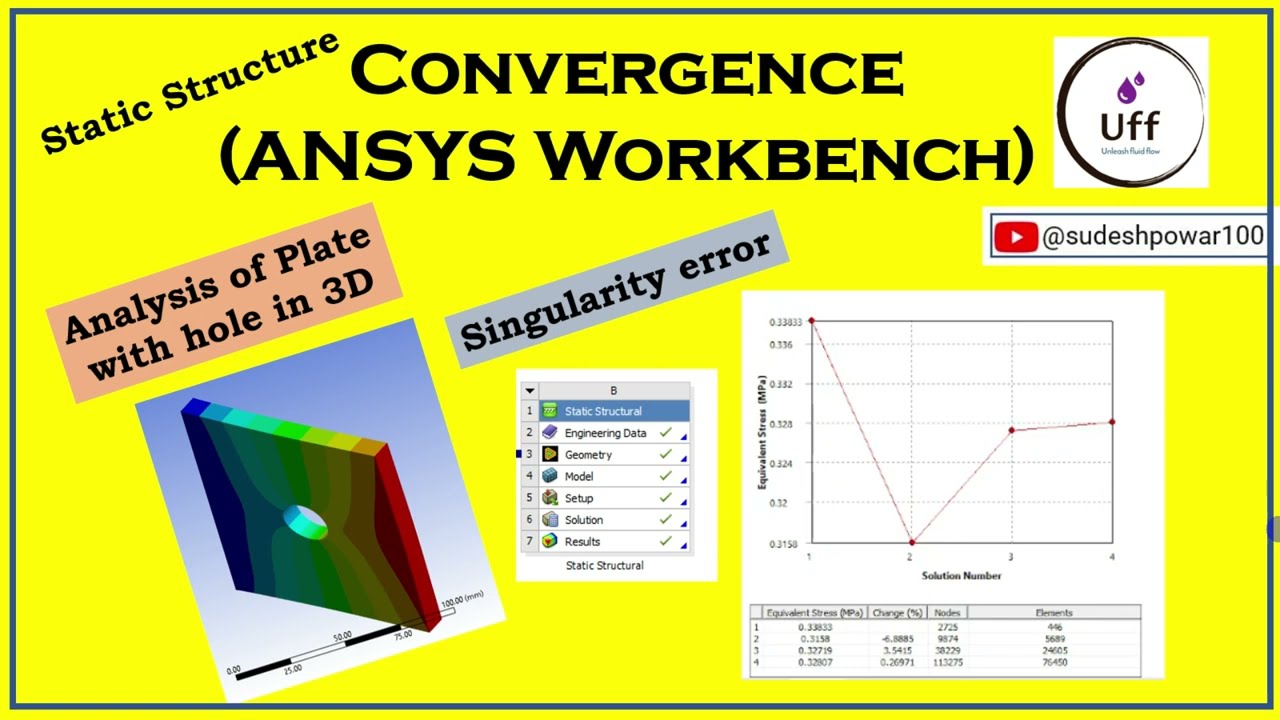

Overcoming Convergence Difficulties In Ansys Workbench Mechanical Pdf Analysis of plate with hole (2d) using ansys workbench (simulation and analytical). The ansys workbench product uses two different criteria for its adaptive procedures. the first criterion merely identifies the largest elements (le), which are deleted and replaced with a finer finite element representation.
Ansys Workbench Pdf Everything else being equal, mesh convergence study is one of the best, full proof method of gaining confidence of the computed stress. unfortunately it does not work for stress singularities because the computed stresses will chase infinity as finer mesh is used. This video will show you the stress convergence and singularity result.when we remove the fillet in your model, the finer mesh we use, the more stress value. In ansys mechanical 2025r1, tackling mesh convergence, local mesh refinement, and stress singularities has never been easier. the software offers powerful tools to handle these challenges efficiently, ensuring that engineers can achieve both accurate and computationally feasible results. The convergence group includes the following categories and preferences: change of result from one adapted solution to the next. the default is 20. the range is from 0 to 100. this should be set if the criteria is the max or min of the result. options include max (default) and min.

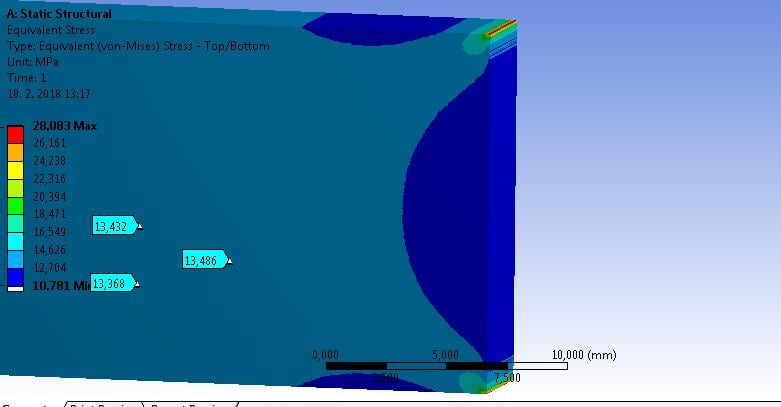

Problem With Convergence And Singularity In ansys mechanical 2025r1, tackling mesh convergence, local mesh refinement, and stress singularities has never been easier. the software offers powerful tools to handle these challenges efficiently, ensuring that engineers can achieve both accurate and computationally feasible results. The convergence group includes the following categories and preferences: change of result from one adapted solution to the next. the default is 20. the range is from 0 to 100. this should be set if the criteria is the max or min of the result. options include max (default) and min. 1) for a design that has a sharp interior corner like the t shaped cantilever, adding a blend will remove the singularity. 2) if you have a singularity where the peak stress in the model occurs, the best option is to update the geometry to remove the singularity. To address stress singularities, create a submodel in high stress areas with sufficient detail and conduct a mesh convergence study, as the lug surface typically reveals maximum stress. In this tutorial, we delve into the nature of stress singularities within ansys workbench, exploring their causes and presenting effective strategies to manage and mitigate them for more. It describes how to import a geometry, generate an initial mesh, apply loads and boundary conditions, set solution parameters like convergence criteria, solve the model, and review stress results on the adapted mesh.
