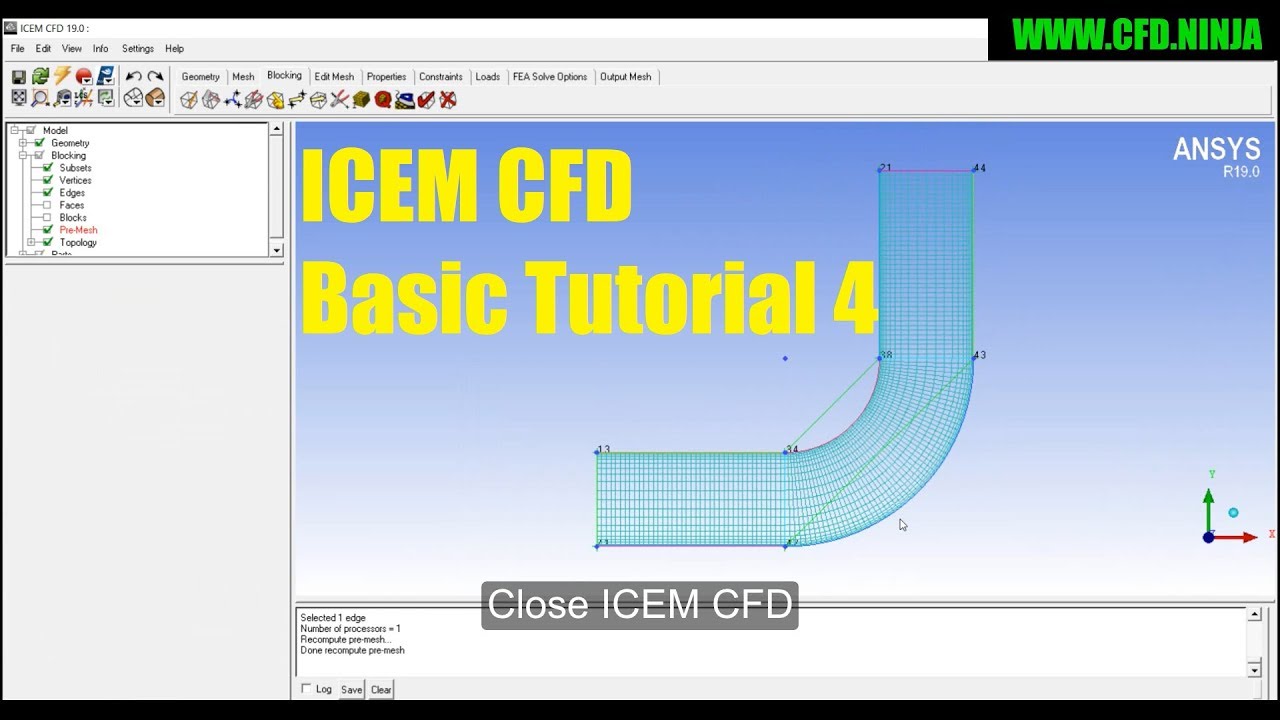

Ansys Icem Cfd Meshing A 2d Pipe Cfd Ninja In this first tutorial, you will learn to create a mesh for 2d pipe using ansys icem cfd.icem is a powerful tool for generating meshing. This video, i demonstrate the complete meshing procedure of a 2d pipe using ansys icem cfd.

Ansys Icem Cfd Meshing A 2d Pipe Cfd Ninja This lab report details the process of meshing a 2d pipe junction using ansys icem cfd. it outlines the steps for creating a project, initializing blocking, associating geometry with mesh, and setting up boundary conditions for cfd simulations. Hexa mesh generation for a 2d pipe junction in this tutorial, you will generate a mesh for a two dimensional pipe junction comprising two inlets and one outlet. after generating an initial mesh, you will check the quality of the mesh, and refine it for a navier stokes solution. This article presented a complete and practical workflow for cylindrical mesh generation using ansys icem cfd. the process was explained step by step, starting from geometry preparation in ansys workbench and ending with a validated structured pre‑mesh ready for cfd simulation. Ansys icem cfd provides a method for rapid generation of surface meshes (quad and tri) for both 3d and 2d geometries. mesh types can be all tri, quad w one tri, quad dominant, or all quad.

Ansys Icem Cfd Meshing A 2d Pipe Cfd Ninja This article presented a complete and practical workflow for cylindrical mesh generation using ansys icem cfd. the process was explained step by step, starting from geometry preparation in ansys workbench and ending with a validated structured pre‑mesh ready for cfd simulation. Ansys icem cfd provides a method for rapid generation of surface meshes (quad and tri) for both 3d and 2d geometries. mesh types can be all tri, quad w one tri, quad dominant, or all quad. Now, icem cfd allows us to generate the mesh manually. proceed to create a geometry of the extended pipe and we will associate each edge with its corresponding curve. Cfd meshing with ansys icem cfd introduction to meshing and ansys icemcfd gui part i ansys icemcfd gui part ii geometry creation and cleanup part i geometry creation and cleanup part ii. Learn ansys icem cfd meshing techniques: tetra, prism, hexa, geometry prep, mesh quality. user manual for engineering and cfd. This project aims to automate the creation of various 2d and 3d meshes in icem cfd. simply run the script for the desired geometry, enter geometric and meshing parameters and generate the mesh in icem.

Ansys Icem Cfd Meshing A 2d Pipe Cfd Ninja Now, icem cfd allows us to generate the mesh manually. proceed to create a geometry of the extended pipe and we will associate each edge with its corresponding curve. Cfd meshing with ansys icem cfd introduction to meshing and ansys icemcfd gui part i ansys icemcfd gui part ii geometry creation and cleanup part i geometry creation and cleanup part ii. Learn ansys icem cfd meshing techniques: tetra, prism, hexa, geometry prep, mesh quality. user manual for engineering and cfd. This project aims to automate the creation of various 2d and 3d meshes in icem cfd. simply run the script for the desired geometry, enter geometric and meshing parameters and generate the mesh in icem.
