Activity 09 Simple Horizontal Curve Group 3 Pdf Geometry Activity 09 simple horizontal curve group 3 free download as pdf file (.pdf), text file (.txt) or read online for free. this document provides instructions and calculations for determining the elements of a simple horizontal curve, given the starting station, length of curve, and deflection angle. Civil engineering fieldwork report on simple horizontal curves. includes calculations, observations, and recommendations for college students.

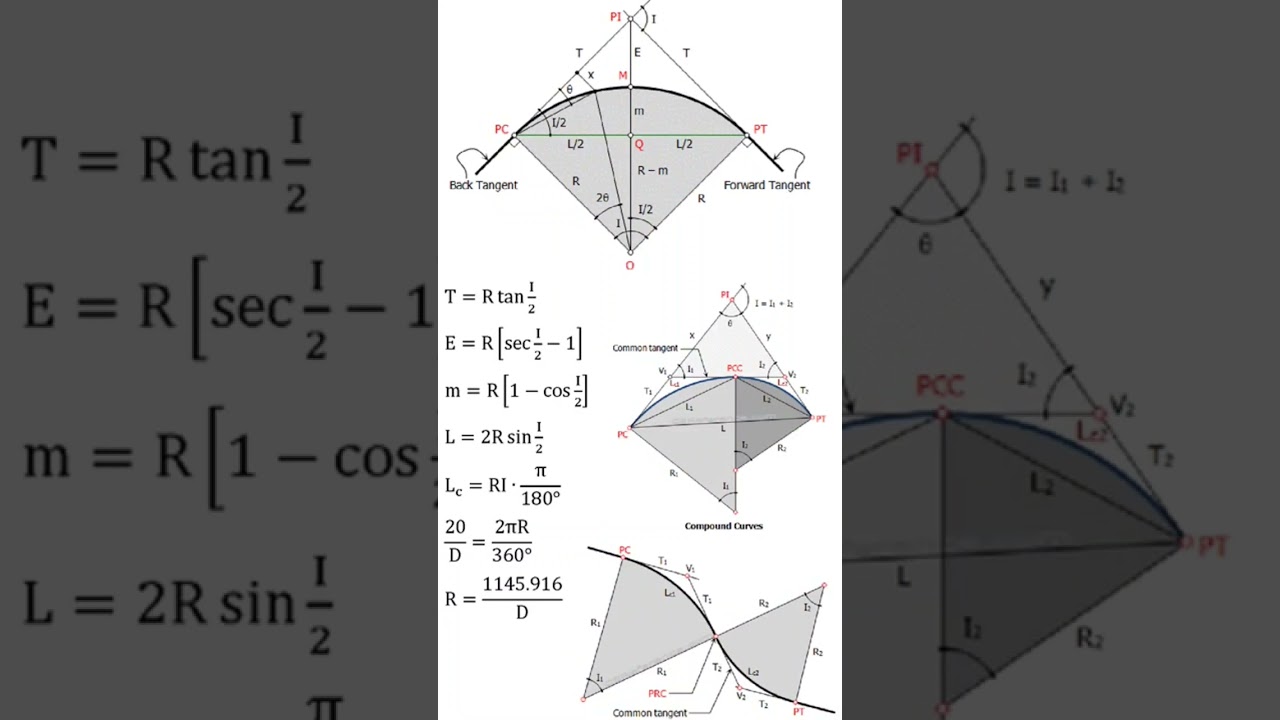

Simple Horizontal Curve Pdf Tangent Angle Simple curve route surveying free download as pdf file (.pdf), text file (.txt) or read online for free. the document contains two surveying problems involving the geometry of horizontal curves. The horizontal curves are, by definition, circular curves of radius r. the elements of a horizontal curve are shown in figure 7.9 and summarized (with units) in table 7.2. Sample problem 3 the perpendicular distance from a point on a simple curve to a point q on the tangent is 64 m. if the distance from pc to q is 260 m, find the degree of the curve. Learn about horizontal curves, simple curve parameters, formulas, and calculations. includes sample problems and exercises for civil engineering students.

Fw1 Simple Horizontal Curve Pdf Surveying Angle Sample problem 3 the perpendicular distance from a point on a simple curve to a point q on the tangent is 64 m. if the distance from pc to q is 260 m, find the degree of the curve. Learn about horizontal curves, simple curve parameters, formulas, and calculations. includes sample problems and exercises for civil engineering students. It consists of straight sections (tangents) and curved sections that provide smooth transitions for vehicles. the design of horizontal alignment directly impacts the safety, comfort, and efficiency of the roadway. To determine the elements of a simple horizontal curve. 1. refer to the figure below of a road section in sablayan, mindoro occidental. 2. the stationing of point pc is 12 100 and the stationing of point pt is 12 250. 3. estimate the bearing of the tangent lines at point pc and pt using the visual. estimate. Design of roadway curves should be based on an appropriate relationship between design speed and curvature on their joint relationships with superelevation and side friction. Horizontal curves are used in highway design to provide a gradual transition between two intersecting roadways. a simple curve is an arc of a circle, with the radius determining the sharpness of the curve.
