Abb Three Phase Induction Motor Wiring Diagram Infoupdate Org Our softstarters reduce the mechanical stress on your motor application, which will increase your uptime. torque control, pump cleaning, motor brake and many other features enable you to operate your process at its full potential. Designing an electrical panel that integrates a softstarter to reduce the surge current during start up of a three phase motor and automatically control the motor based on the water level using a sensor.

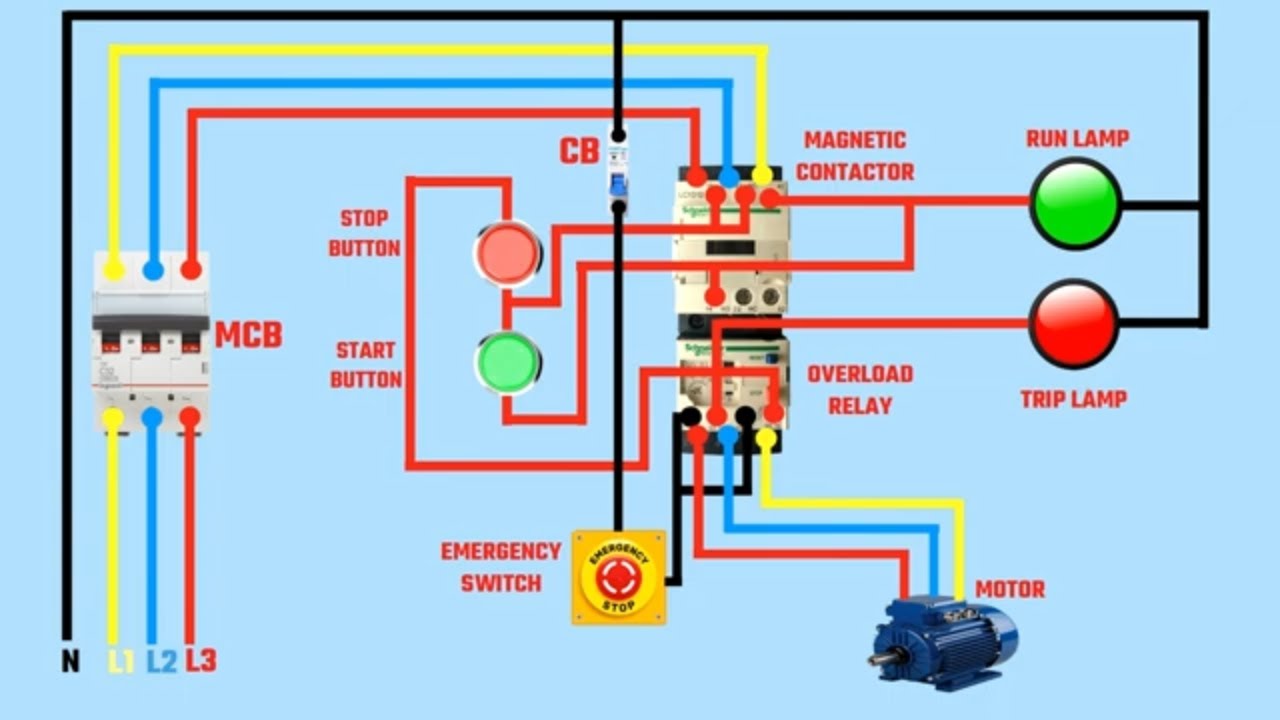

Circuit Diagram Of 3 Phase Induction Motor Sd Control Infoupdate Org The abb psr soft starter is a reliable and cost effective solution for controlling the acceleration, deceleration, and torque of three phase induction motors. in order to correctly install and set up the soft starter, it is important to have a thorough understanding of its wiring diagram. Enjoy the videos and music you love, upload original content, and share it all with friends, family, and the world on . The document provides a comprehensive overview of soft starters for three phase induction motors, detailing their hardware implementation and operation principles. All psr units are three phase controllers that manage two or three phases of the motor voltage (the control method is optimized for simplicity and smoothness). the control electronics in each unit provide the timed voltage ramp and then activate the bypass at full voltage.
Circuit Diagram Of 3 Phase Induction Motor Sd Control Infoupdate Org The document provides a comprehensive overview of soft starters for three phase induction motors, detailing their hardware implementation and operation principles. All psr units are three phase controllers that manage two or three phases of the motor voltage (the control method is optimized for simplicity and smoothness). the control electronics in each unit provide the timed voltage ramp and then activate the bypass at full voltage. Input voltage: 208 600vac 3 phase 10% 15% at 50 60hz. control supply: 24vdc. mounting: cubicle mount. ambient temperature: rated at 10c to 40c without de rating. part number is psr30 600 11 or 1sfa896109r1100. download the manual and data sheet from the link below:. Semi conductor fuses (high speed fuses) are the only type of fuses that are fast enough to achieve a fully type 2 coordination when using a soft starter. a separate overload relay for the motor protection is always required in combination with this type of fuse. Standards and approvals all abb low voltage softstarters are developed and manufactured according to the rules set out in the iec (international electrotechnical commission). To avoid the problem of high starting current, voltage is increased gradually from lower to higher level using smooth and soft starters. a smooth and soft starter is employed in a three phase induction motor to eliminate the surge in current and electromagnetic torque during starting.
