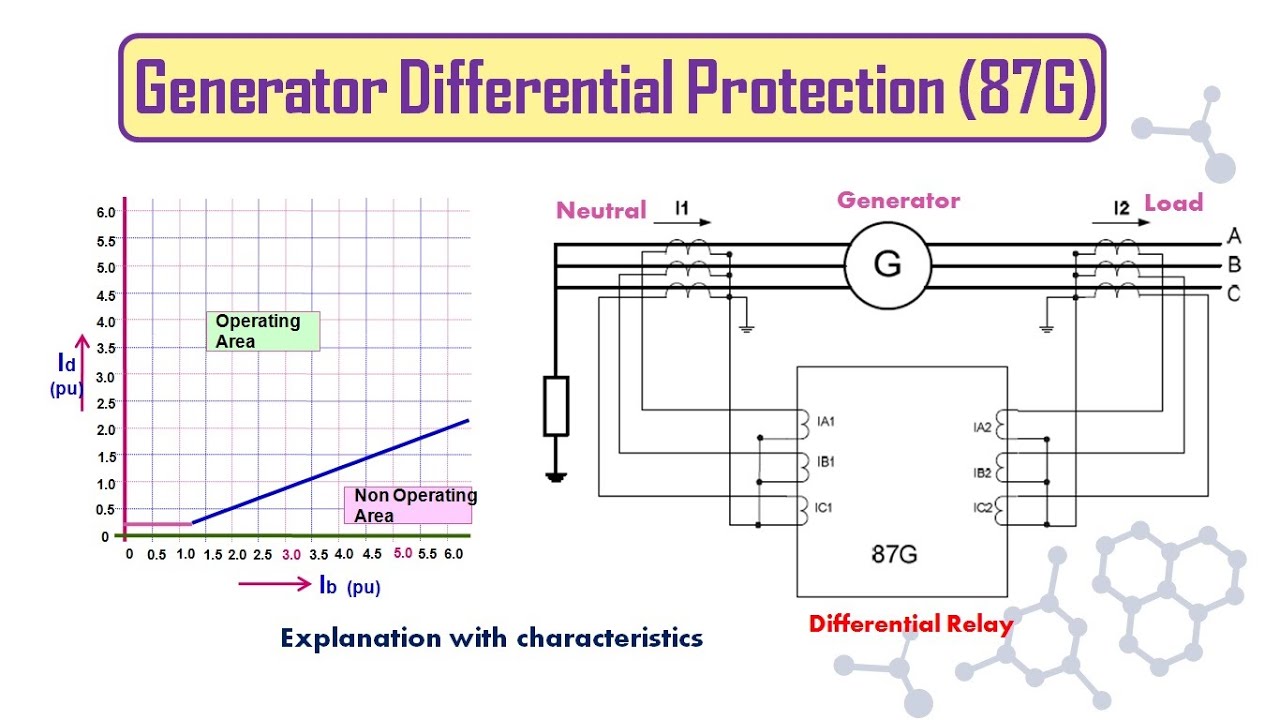

Protection Generator Differential Protection 87g Youtube The document provides an overview of generator differential protection (ansi 87g) for the siprotec 5 7um85 system, detailing its functions, structure, and principles. Generally, phase faults at generators rarely occur, but when they do, large fault currents can flow and make a mess. the best protection is differential (ansi 87), and this type is recommended for all generators, except maybe for small units of 1 mva and less.
Generator Protection Functions And Test Methods Eep 87g generator differential protection config and testing of the generator, transformer, line, and motor protection functions read more ». The generator differential protection function provides main protection for generators or large motors. the application needs current transformers in all three phases both on the network side and on the neutral side. This photograph shows three differential relays used to protect the windings of a three phase generator at a gas turbine power plant. note how one differential current relay is required to protect each of the generator’s three phases:. An overcurrent relay 51n or a differential relay 87g gives the protection for each generator. the transformer needs to generate a ground current of at least 50% of generator rated current to provide about 95% or more winding coverage.
Mistakes In Generator Protection That Operators Often Make Eep This photograph shows three differential relays used to protect the windings of a three phase generator at a gas turbine power plant. note how one differential current relay is required to protect each of the generator’s three phases:. An overcurrent relay 51n or a differential relay 87g gives the protection for each generator. the transformer needs to generate a ground current of at least 50% of generator rated current to provide about 95% or more winding coverage. The study covers generator differential protection (87g) and restricted earth fault protection (64ref), along with validation of generator data, ct specifications and system parameters. It features differential protection with harmonic restraint to prevent false trips during inrush or overexcitation, ensuring selective fault clearance while minimizing equipment damage. The differential protection scheme, represented by the code 87g, is the most critical protection function in the iec standard for generator protection. it measures current at both ends of the generator stator winding and compares the difference. under normal operation, the difference is nearly zero. Differential protection is primarily used to clear any internal faults in the stator winding of a generator or alternator. the differential protection is provided in the generator by using longitudinal differential relay.
Six Differential Stator Phase Fault Protection 87 For All Size The study covers generator differential protection (87g) and restricted earth fault protection (64ref), along with validation of generator data, ct specifications and system parameters. It features differential protection with harmonic restraint to prevent false trips during inrush or overexcitation, ensuring selective fault clearance while minimizing equipment damage. The differential protection scheme, represented by the code 87g, is the most critical protection function in the iec standard for generator protection. it measures current at both ends of the generator stator winding and compares the difference. under normal operation, the difference is nearly zero. Differential protection is primarily used to clear any internal faults in the stator winding of a generator or alternator. the differential protection is provided in the generator by using longitudinal differential relay.
Generator Protection Calculations Settings Pdf The differential protection scheme, represented by the code 87g, is the most critical protection function in the iec standard for generator protection. it measures current at both ends of the generator stator winding and compares the difference. under normal operation, the difference is nearly zero. Differential protection is primarily used to clear any internal faults in the stator winding of a generator or alternator. the differential protection is provided in the generator by using longitudinal differential relay.
