Five Variables K Map Minimize The Following Boolean Function Use Five Simplify boolean expressions with 5 variables using karnaugh map solver, step by step, with visual grouping and explanation. Any boolean expression or function comprising of 5 variables can be solved using the 5 variable k map. a k map for a 5 variable expression can be denoted with two 4 variable maps one beside the other.
K Map With 6 Variables At Holly Mellott Blog Now, let us discuss some solved examples to understand the application of a 5 variable k map in reducing a given 5 variable boolean function in either sop form or pos form. Online k map (karnaugh map) solver for 2, 3, 4 and 5 variables. switch the values between 0, 1 and x (don't care) and see the result simultaneously. In this article, we will look at the concepts and techniques behind the 5 variable k map in order to help you understand and use this useful tool in digital circuit design. Try tab and arrow keys for keyboard input.

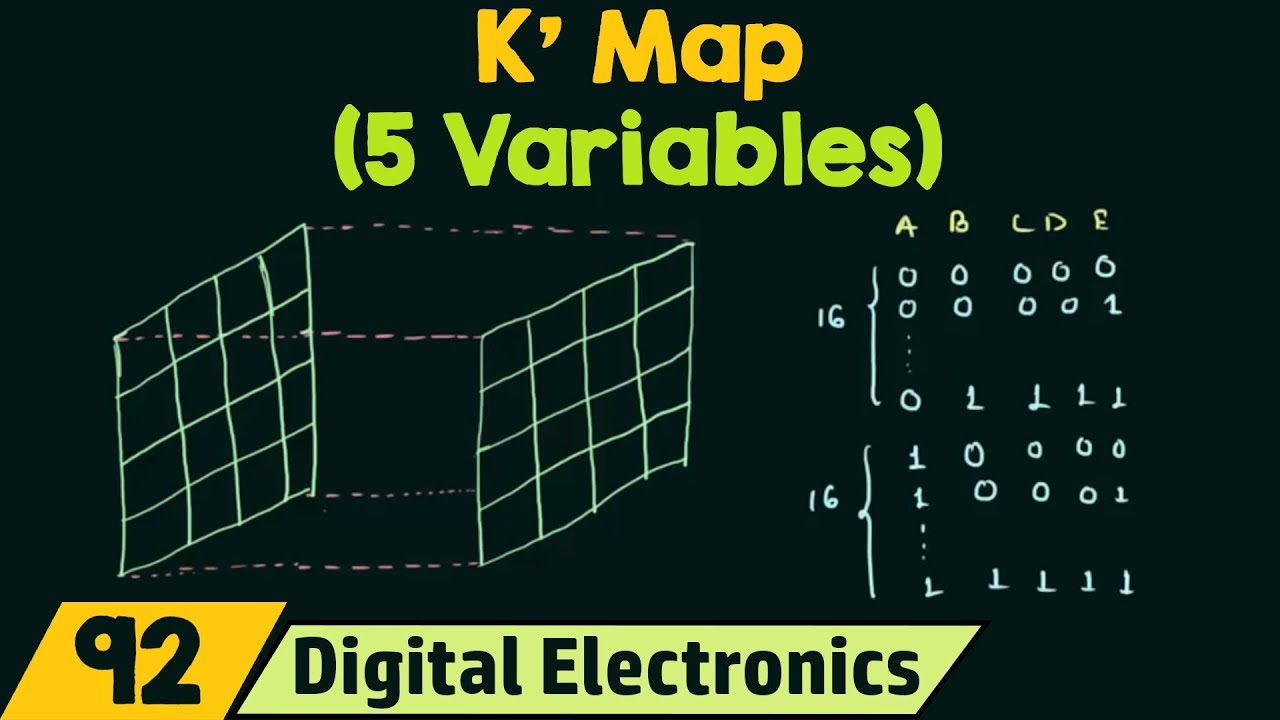

K Map With 6 Variables At Holly Mellott Blog In this article, we will look at the concepts and techniques behind the 5 variable k map in order to help you understand and use this useful tool in digital circuit design. Try tab and arrow keys for keyboard input. Design a circuit of 5 input variables that generates output 1 if and only if the number of 1’s in the input is prime (i.e., 2, 3 or 5). the minterms can easily be found from karnaugh map where addresses of 2,3 or 5 numbers of 1. this is shown in fig. x 6. Free online k map solver to simplify boolean expressions. solve karnaugh maps step by step for 2, 3, 4 and 5 variables with visual k map and minimized sop expression. Read about larger 5 & 6 variable karnaugh maps (karnaugh mapping) in our free electronics textbook. A 5 variable k map requires 25 = 32 cells, but adjacent cells are difficult to identify on a single 32 cell map. therefore, two 16 cell k maps are generally used.
