5 Variable K Map Digital Logic Design 1

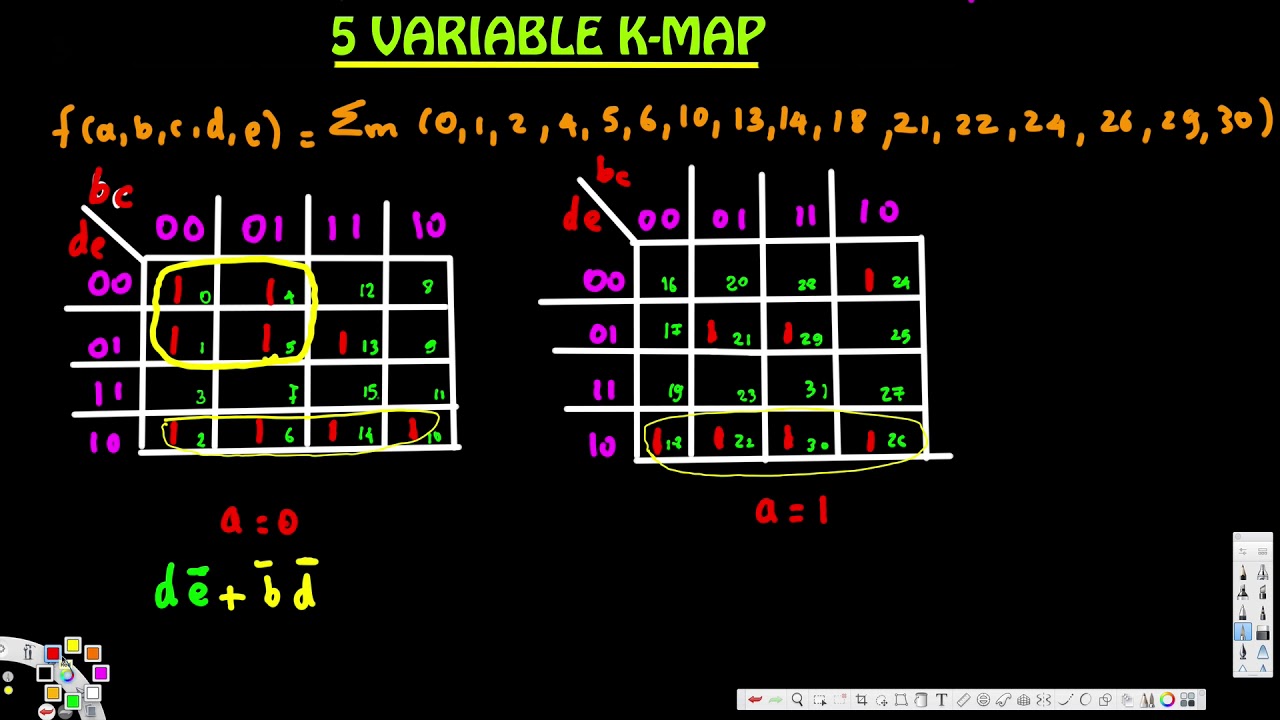

5 Variable K Map Digital Logic Design 1 Logic Design Logic Any boolean expression or function comprising of 5 variables can be solved using the 5 variable k map. a k map for a 5 variable expression can be denoted with two 4 variable maps one beside the other. Now, let us discuss some solved examples to understand the application of a 5 variable k map in reducing a given 5 variable boolean function in either sop form or pos form.

5 Variable K Map In Digital Logic Geeksforgeeks Simplify boolean expressions with 5 variables using karnaugh map solver, step by step, with visual grouping and explanation. For digital logic students, the 5 variable k map is a critical, yet often intimidating, tool for advanced logic minimization. welcome to the ultimate guide designed to demystify this challenge. The older version of the five variable k map, a gray code map or reflection map, is shown above. the top (and side for a 6 variable map) of the map is numbered in full gray code. 5 variable k map in digital logic karnaugh map or k map is an alternative way to write truth table and is used for the simplification of boolean expressions. so far we are familiar with 3 variable k map & 4 variable k map. now, let us discuss the 5 variable k map in detail.

5 Variable K Map In Digital Logic Geeksforgeeks The older version of the five variable k map, a gray code map or reflection map, is shown above. the top (and side for a 6 variable map) of the map is numbered in full gray code. 5 variable k map in digital logic karnaugh map or k map is an alternative way to write truth table and is used for the simplification of boolean expressions. so far we are familiar with 3 variable k map & 4 variable k map. now, let us discuss the 5 variable k map in detail. What is karnaugh map (k map)? karnaugh map or k map is a map of a function used in a technique used for minimization or simplification of a boolean expression. it results in less number of logic gates and inputs to be used during the fabrication. In this article, we will look at the concepts and techniques behind the 5 variable k map in order to help you understand and use this useful tool in digital circuit design. Online k map (karnaugh map) solver for 2, 3, 4 and 5 variables. switch the values between 0, 1 and x (don't care) and see the result simultaneously. Let’s put our 5 variable karnaugh map to use. design a circuit which has a 5 bit binary input (a, b, c, d, e), with a being the msb (most significant bit).
