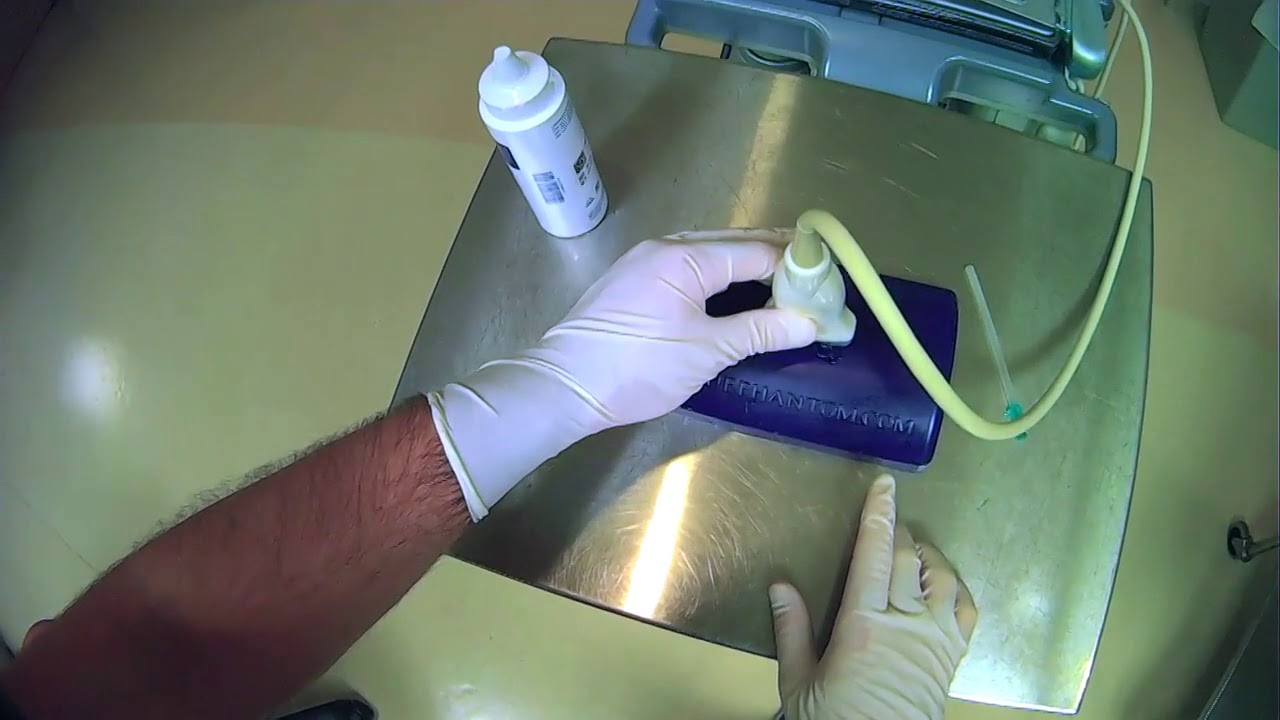

Schematic Of Probe Position And Probe Orientation Download This video (and the playlist it belongs to) gives a tutorial on how to utilize ultrasound properly for interventional radiology procedures. read more on step. Orienting your probe the ultrasound probe exhibits directionality in the sense that one end of the probe will transmit information to one end of the viewing screen. it is essential to make sure you know which end of the probe corresponds to the right and left sides of the screen.
Schematic Of Probe Position And Probe Orientation Download In all patients (male or female), tilt fan the probe left and right to view the lateral borders of the bladder to view free fluid. in males identify the bladder, prostate and rectovesical pouch. When using a longitudinal view, hold the probe so that the orientation notch is towards the patient’s head. when using a transverse view, keep the notch pointed towards the patient’s right side. The ultrasound probe can be moved in 5 different ways. in order to become competent with ultrasound image acquisition, your hand needs to learn how to move the probe in each of these 5 different ways: slide the probe up and down (in a head to toe direction) slide the probe medially and laterally. Probe placed across body right to left to create an axial view with probe marker pointing to patient's right coronal: indicator to patient’s head, but probe on lateral side of body.
Graphical Representation Of Probe Placement And Probe Characteristics The ultrasound probe can be moved in 5 different ways. in order to become competent with ultrasound image acquisition, your hand needs to learn how to move the probe in each of these 5 different ways: slide the probe up and down (in a head to toe direction) slide the probe medially and laterally. Probe placed across body right to left to create an axial view with probe marker pointing to patient's right coronal: indicator to patient’s head, but probe on lateral side of body. 📚 learn the fundamentals of ultrasound probe positioning in this short 3d animated explainer!. Here we see the proper probe marker orientation for the four standard views of the heart i think of them in a specific sequence such that the probe marker starts pointed to the patient’s right shoulder then turns to the patients left shoulder, left axilla, then left hip. For all organ systems (apart from cardiac), the probe marker should be on the left side of the image (except for emergency medicine where the probe marker is always on the left including cardiac imaging). This image shows the probe with the index finger on the notch. synonyms for notch are knob marker bar pointer. some new probes will have these on both sides. if so, tap your finger on the probe and see which side of the screen you see it. green dot should be on the left side of the screen.
