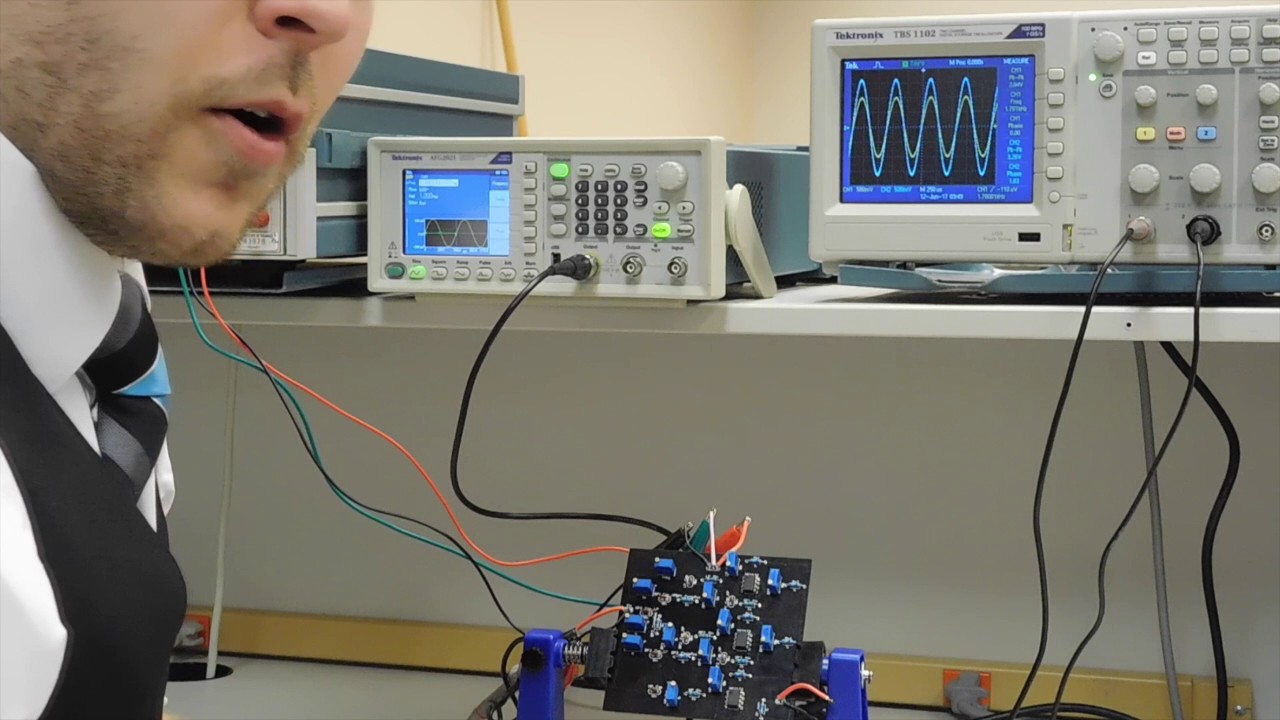

5 Band Equalizer Circuit

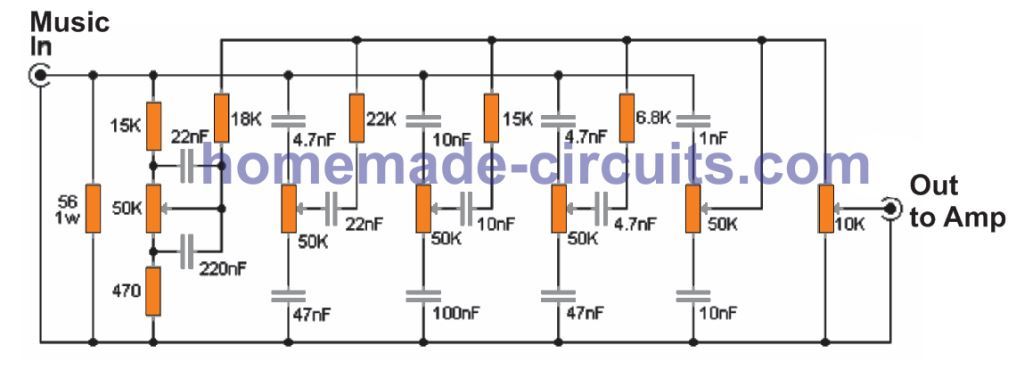

5 Band Graphic Equalizer Circuit Diagram This audio equalizer allows selective adjustment of five frequency bands using passive components. it is suitable for stereo devices by using two identical circuits, one for each channel. Today in this article we are going to show you the circuit diagram and description of the 5 band audio equalizer circuit using lm833. we already control 8w 8w stereo with a graphic equalizer, but this time we come with 5 band audio equalizer circuit.

5 Band Equalizer Circuit Diagram Circuit Diagram This is a 5 band equalizer circuit diagram for any audio amplifier. every amplifier needs a bass tone circuit to control the sound and sound quality. this circuit has 5 graphic equalizers to balance the sound as we want. this diagram runs on a single 12 volt. Learn about the circuit diagram for a 5 band graphic equalizer and how it can be used to adjust the audio frequencies in different settings. find out how to build and troubleshoot the circuit for optimal audio performance. 5 band graphic equalizer using lf353 ic and pcb. design for adjusting multiple frequencies to enhance audio quality. If you are one of those music enthusiast who take the variations and performance of the music quality very seriously, then this simple 5 band equalizer circuit can be one of your favorite music projects.

5 Band Graphic Equalizer Circuit Diagram 5 band graphic equalizer using lf353 ic and pcb. design for adjusting multiple frequencies to enhance audio quality. If you are one of those music enthusiast who take the variations and performance of the music quality very seriously, then this simple 5 band equalizer circuit can be one of your favorite music projects. Design diagram of 5 band graphic equaliser circuit based on operational amplifier ne5532 or lm833, a low cost op amp chip with fairly good quality output. With switch s1, we can isolate the eq. inside or except operation, leaving the musical signal to pass without no alteration. The document describes a 5 band stereo equalizer circuit. it divides the audio spectrum into 5 frequency bands (100hz, 330hz, 1khz, 3.3khz, 10khz) to allow finer adjustment of the sound. Description this complete high quality, low noise 5 band graphic equalizer circuit is based around monolithic linear integrated circuit la3600 manufactured by sanyo.

5 Band Graphic Equalizer Circuit Diagram Design diagram of 5 band graphic equaliser circuit based on operational amplifier ne5532 or lm833, a low cost op amp chip with fairly good quality output. With switch s1, we can isolate the eq. inside or except operation, leaving the musical signal to pass without no alteration. The document describes a 5 band stereo equalizer circuit. it divides the audio spectrum into 5 frequency bands (100hz, 330hz, 1khz, 3.3khz, 10khz) to allow finer adjustment of the sound. Description this complete high quality, low noise 5 band graphic equalizer circuit is based around monolithic linear integrated circuit la3600 manufactured by sanyo.

5 Band Stereo Equalizer Circuit Diagram Circuit Diagram The document describes a 5 band stereo equalizer circuit. it divides the audio spectrum into 5 frequency bands (100hz, 330hz, 1khz, 3.3khz, 10khz) to allow finer adjustment of the sound. Description this complete high quality, low noise 5 band graphic equalizer circuit is based around monolithic linear integrated circuit la3600 manufactured by sanyo.
