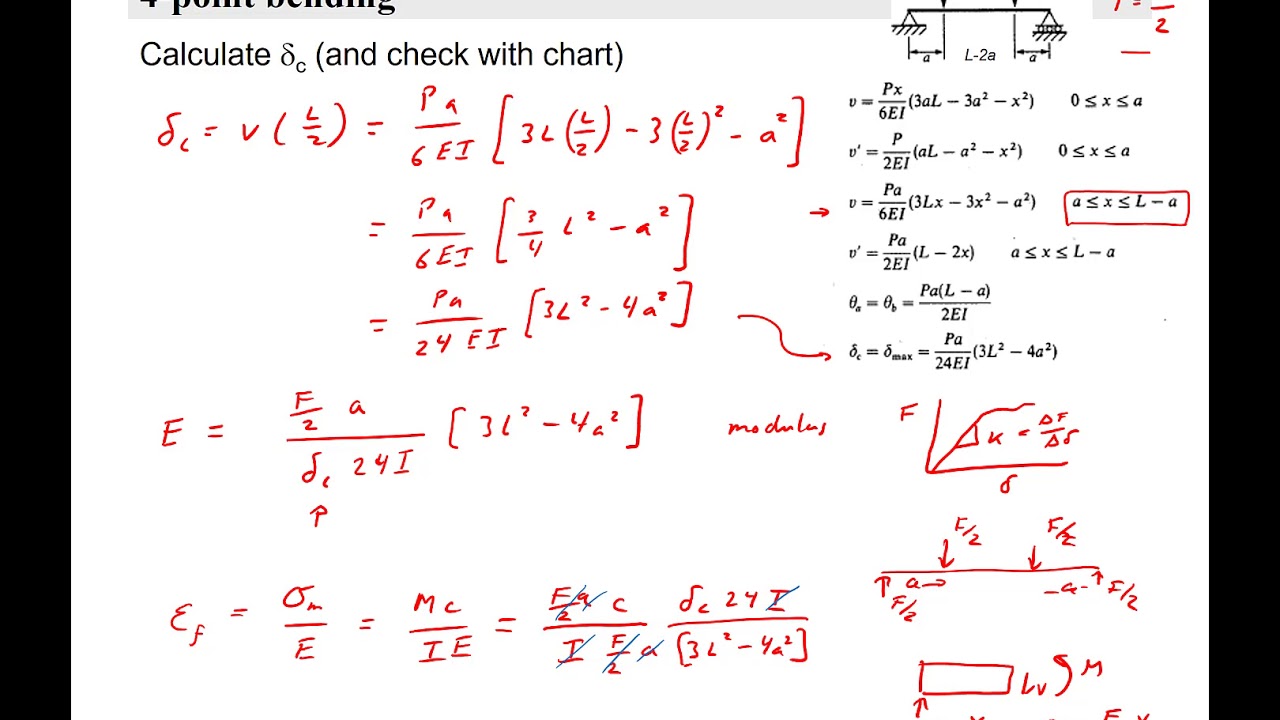

Reverse Calcs Pdf Bending Beam Structure Subscribed 35 7.6k views 6 years ago calculation of center deflection, modulus, and strain for 4 point bending test more. Calculation of 4 point bending test with the raw data acquired from mts machine and deflectometer, with the rate of data collection being 100, crosshead speed, load, deflectometer reading and time is provided in an .csv format.
Calcs Q24 27 Pdf Bending Young S Modulus Special attention was paid to the third point loading test. the presented model is applicable for calculating deflection due to bending moment and transverse force for both thin and thick. Смотрите видео онлайн «4pt bending calcs with deflectometer» на канале «Физика в развлечениях» в хорошем качестве и бесплатно, опубликованное 26 января 2025 года в 3:23, длительностью 00:11:15, на видеохостинге rutube. Four point dynamic bending test the 4 point dynamic bending test is used for the investigation of pavement material properties like stiffness modulus and fatigue characteristics. the purpose of this document is to give an overview of the equations which govern the interpretation of the measurements. Subjected to a four point bending test. the specimen is 10 centimeters long, and has an inner radius ( ) of .5 mm and an outer radius ( ) of 5.0 mm. the specimen is placed on two supports that are 5 cm apart (l), and the actuator appli.
Design Calcs 45m Spanpb1 Pdf Prestressed Concrete Bending Four point dynamic bending test the 4 point dynamic bending test is used for the investigation of pavement material properties like stiffness modulus and fatigue characteristics. the purpose of this document is to give an overview of the equations which govern the interpretation of the measurements. Subjected to a four point bending test. the specimen is 10 centimeters long, and has an inner radius ( ) of .5 mm and an outer radius ( ) of 5.0 mm. the specimen is placed on two supports that are 5 cm apart (l), and the actuator appli. Principal stress in 4 point bending principal stress in terms of normal and shear stress: > sig[p1] : = (sigma 2) sqrt ( (sigma 2) ^2 tau^2 ) ;. As a downward force (f) is applied in the middle of the beam, the flex (Δx) is recorded. the ratio (f Δx) is the effective stiffness of the length of beam being tested, and is measured directly from the slope of the f vs. Δx graph. the flexural elastic modulus for the material is then calculated. Comparision between the results from 4 point bending using a deflectometer (center displacement) and crosshead (anvil displacement). Four point bending (fpb) is a cornerstone element of the beam flexure portion of a sophomore level mechanics of materials course. the fpb lecture has traditionally developed the theory from free body diagram through beam deflection, with related homework problems providing analytical practice.
Four Point Bending Test Msrpco Principal stress in 4 point bending principal stress in terms of normal and shear stress: > sig[p1] : = (sigma 2) sqrt ( (sigma 2) ^2 tau^2 ) ;. As a downward force (f) is applied in the middle of the beam, the flex (Δx) is recorded. the ratio (f Δx) is the effective stiffness of the length of beam being tested, and is measured directly from the slope of the f vs. Δx graph. the flexural elastic modulus for the material is then calculated. Comparision between the results from 4 point bending using a deflectometer (center displacement) and crosshead (anvil displacement). Four point bending (fpb) is a cornerstone element of the beam flexure portion of a sophomore level mechanics of materials course. the fpb lecture has traditionally developed the theory from free body diagram through beam deflection, with related homework problems providing analytical practice.
