4 Bit Bcd Adder Circuit Diagram A bcd adder is a circuit for the addition of two binary coded decimal numbers. bcd is another format used in representing numbers where each digit will be represented using a 4 bit binary code. In this lecture, we are going to learn about the what is bcd adder, the bcd adder circuit diagram, the bcd adder truth table, the bcd adder block diagram, and the operation of the bcd adder in every detail.

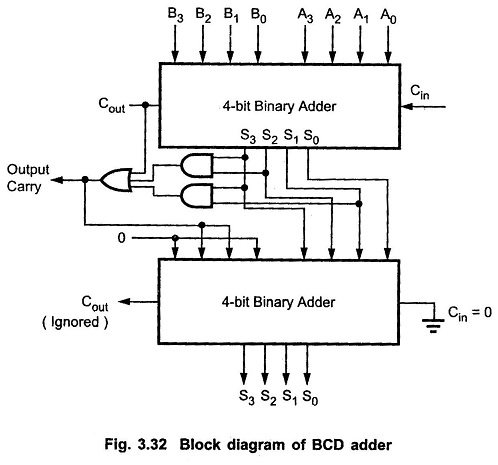

4 Bit Bcd Adder Circuit Diagram Explore the bcd adder circuit and learn how it adds decimal digits using binary coded decimal representation. This document describes a student project to implement a 4 bit binary coded decimal (bcd) adder circuit. With this design information we can draw the bcd adder block diagram, as shown in the fig. 3.32. as shown in the fig. 3.32 , the two bcd numbers, together with input carry, are first added in the top 4 bit binary adder to produce a binary sum. The basic principle behind a 4 bit bcd adder circuit is to add two bcd numbers and produce a result that is also in bcd format. the circuit consists of four full adders connected in series, with each full adder handling one bit of the inputs.

4 Bit Bcd Adder Circuit Diagram With this design information we can draw the bcd adder block diagram, as shown in the fig. 3.32. as shown in the fig. 3.32 , the two bcd numbers, together with input carry, are first added in the top 4 bit binary adder to produce a binary sum. The basic principle behind a 4 bit bcd adder circuit is to add two bcd numbers and produce a result that is also in bcd format. the circuit consists of four full adders connected in series, with each full adder handling one bit of the inputs. This diagram is an essential tool for any electrical engineer trying to compute binary coded decimal (bcd) numbers. it is especially useful for adding four bit data fields such as those used in computers. A 4 bit bcd adder, adds two bcd inputs and a carry input, and generates a 4 bit sum output in bcd and a carry output. a correction logic is required, to convert the binary sum to bcd sum. In this project, we are implementing and designing a bcd adder circuit using ic 7483. the objective of this experiment is to fully understand and implement of addition of two bcd numbers and get the result in bcd form. A block diagram for the bcd adder is shown in figure1. the block diagram shows that the bcd adder contains two 4 bit binary adders and one combinational logic circuit.

4 Bit Bcd Adder Circuit Diagram This diagram is an essential tool for any electrical engineer trying to compute binary coded decimal (bcd) numbers. it is especially useful for adding four bit data fields such as those used in computers. A 4 bit bcd adder, adds two bcd inputs and a carry input, and generates a 4 bit sum output in bcd and a carry output. a correction logic is required, to convert the binary sum to bcd sum. In this project, we are implementing and designing a bcd adder circuit using ic 7483. the objective of this experiment is to fully understand and implement of addition of two bcd numbers and get the result in bcd form. A block diagram for the bcd adder is shown in figure1. the block diagram shows that the bcd adder contains two 4 bit binary adders and one combinational logic circuit.
