3d Coordinates House Sheet Pdf Find 3 points on the plane you've placed in our coordinate system that are different from the initial four points that you placed and identify the coordinates of each of them. For points in the plane we have cartesian coordinates (x, y) and polar coordinates (r, θ). two numbers are needed to address any point. how are locations on earth’s surface typically represented? what information is needed to locate the position of a flying plane? start with the x y plane.
3d Coordinates Teaching Resources Professional tool for developers and designers to get exact coordinates, dimensions, and positioning data from pdf files. get exact dimensions and coordinates with pixel perfect accuracy. draw bounding boxes directly on pdf pages to extract coordinates. Representing 3d points using vectors 3d point as 3‐vector 3d point using affine homogeneous coordinates as 4‐vector. 6. the diagram shows a square based pyramid drawn on a 3d grid. m is the centre of the base oabc. d is directly above m. find the coordinates of the point b. ( , , ). 3d graphics and cartesian coordinates this document discusses three dimensional graphics, including the representation of geometric data, coordinate systems, and display techniques such as parallel and perspective projection.

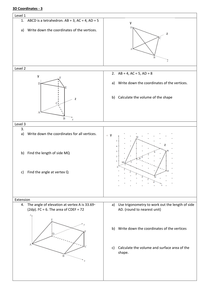

3d Coordinates Resources Tes 6. the diagram shows a square based pyramid drawn on a 3d grid. m is the centre of the base oabc. d is directly above m. find the coordinates of the point b. ( , , ). 3d graphics and cartesian coordinates this document discusses three dimensional graphics, including the representation of geometric data, coordinate systems, and display techniques such as parallel and perspective projection. In section 2.2 we observed that we can describe the position of a point using a 3d vector, while in section 2.3.1 we observed that we can describe the orientation of a frame using a rotation matrix. In three dimensions, we need to specify three numbers to describe the position of an object (e.g. a bird flying in the air). in a three dimensional cartesian coordinate system, we simply add a third axis, z, that is mutually perpendicular to both x and y. the origin and reference line are noted. Let us introduce some basic notation out of the way. the 3 d coordinate system is often denoted by r 3. likewise, the 2 d coordinate system is often denoted by 2. r and 1 d coordinate system is denoted by r. also, as you might have guessed then a general n d coordinate system is often denoted by rn. To create a 3 dimensional rectangular coordinate system, also known as space, 3 space, or r3, we begin with a point o called the origin. from o, we draw three directed perpendicular lines called the coordinate axes, labelling them the x , y , and z axes using the right hand rule (de nition follows).
3d Coordinates Ks4 Teaching Resources In section 2.2 we observed that we can describe the position of a point using a 3d vector, while in section 2.3.1 we observed that we can describe the orientation of a frame using a rotation matrix. In three dimensions, we need to specify three numbers to describe the position of an object (e.g. a bird flying in the air). in a three dimensional cartesian coordinate system, we simply add a third axis, z, that is mutually perpendicular to both x and y. the origin and reference line are noted. Let us introduce some basic notation out of the way. the 3 d coordinate system is often denoted by r 3. likewise, the 2 d coordinate system is often denoted by 2. r and 1 d coordinate system is denoted by r. also, as you might have guessed then a general n d coordinate system is often denoted by rn. To create a 3 dimensional rectangular coordinate system, also known as space, 3 space, or r3, we begin with a point o called the origin. from o, we draw three directed perpendicular lines called the coordinate axes, labelling them the x , y , and z axes using the right hand rule (de nition follows).
2 1 The 3 Dimensional Coordinate System Pdf Let us introduce some basic notation out of the way. the 3 d coordinate system is often denoted by r 3. likewise, the 2 d coordinate system is often denoted by 2. r and 1 d coordinate system is denoted by r. also, as you might have guessed then a general n d coordinate system is often denoted by rn. To create a 3 dimensional rectangular coordinate system, also known as space, 3 space, or r3, we begin with a point o called the origin. from o, we draw three directed perpendicular lines called the coordinate axes, labelling them the x , y , and z axes using the right hand rule (de nition follows).
