Group Delay And Phase Delay Pdf Coaxial Cable Permittivity While a phase response describes phase shift in angular units (such as degrees or radians), the phase delay is in units of time and equals the negative of the phase shift at each frequency divided by the value of that frequency. In the next two sections we look at two alternative forms of the phase response: phase delay and group delay. after considering some examples and special cases, poles and zeros of the transfer function are discussed in the next chapter.

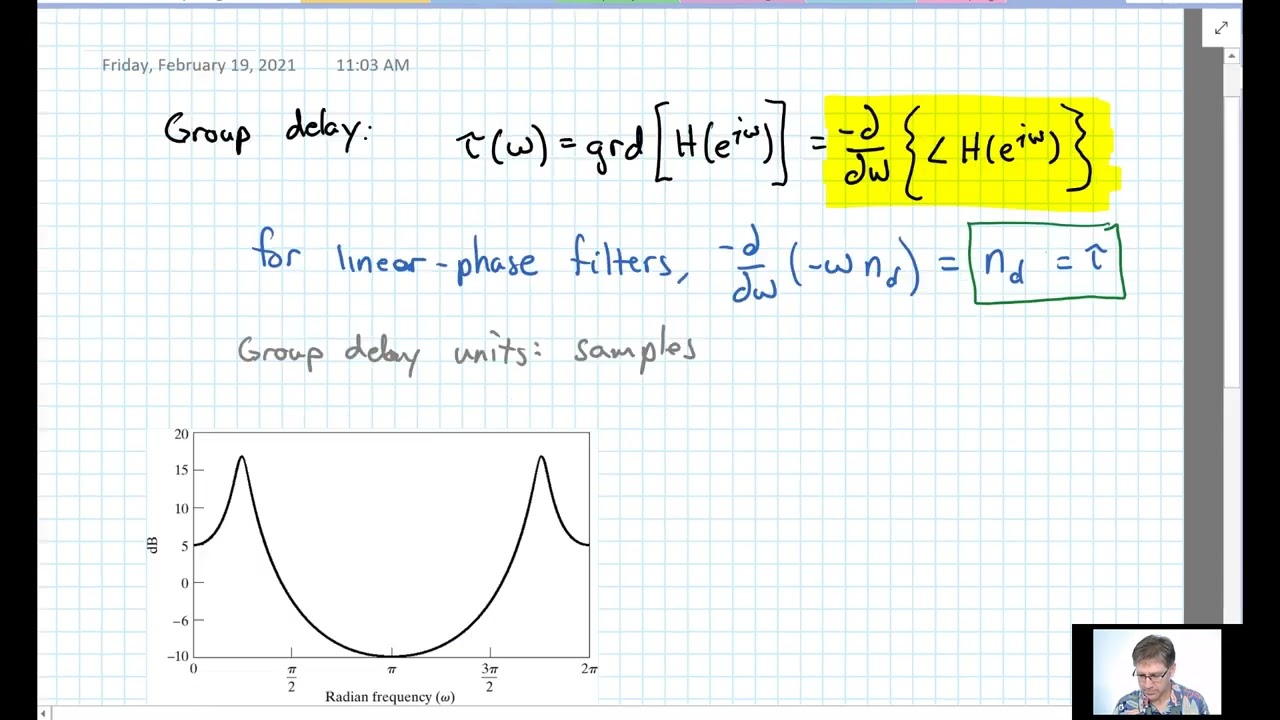

Group Delay Pdf Group delay and phase delay. this section covers the formulas used to calculate and the relationships between the group delay response and the phase delay response of a filter. for a filter with a frequency response of h (e jω), the phase delay response τ ρ is defined by the following equation:. Group delay is defined as the negative derivative (or slope) of the phase response vs. frequency. it is a measure of the relative delay at different frequencies from the input to the output in a system. From the dft shifting theorem, we know that applying delay to a signal results in a rotation of each dft component x [m], so we can interpret the rotation by ϕ as implementing a delay of the m th sinusoid. In the following section we’ll examine some basic mathematical properties of phase delay and group delay and explore how those properties relate to the phase response of an lti system.
Group Delay And Phase Delay Semantic Scholar From the dft shifting theorem, we know that applying delay to a signal results in a rotation of each dft component x [m], so we can interpret the rotation by ϕ as implementing a delay of the m th sinusoid. In the following section we’ll examine some basic mathematical properties of phase delay and group delay and explore how those properties relate to the phase response of an lti system. Pole zero inverse pairs cause a narrowband group delay, while leaving the magnitude fixed. Phase delay and group delay describe how different frequencies can propagate at different speeds in a dielectric medium. the concept is brought up in digital signal integrity, but it also applies in rf devices that use modulated signals and a reference oscillator. I think people generally understand the curves, what to look for from both a positive and negative perspective. but what should we be targeting with regards to phase, group delay, etc.? what is an acceptable level versus an unacceptable level that we should be trying hard to avoid?. The group delay of a filter is a measure of the average time delay of the filter as a function of frequency. the group delay is defined as the negative first derivative of the filter's phase response.
