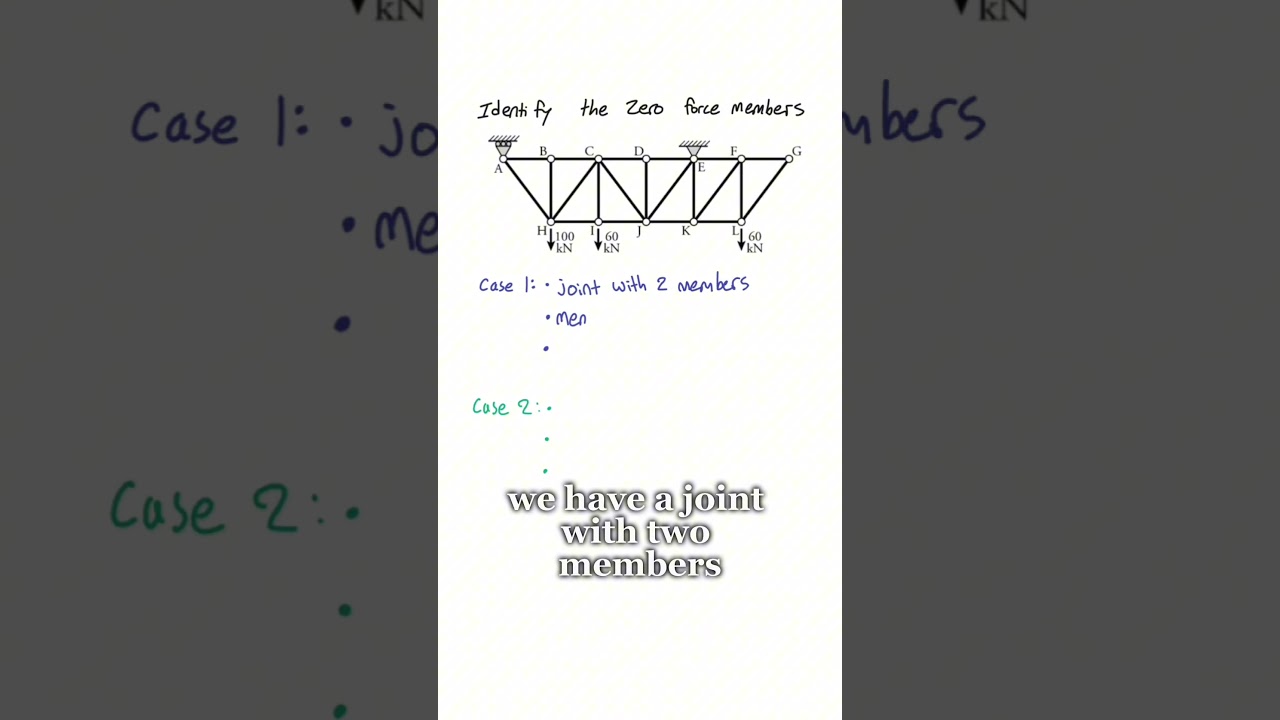

Statics Trusses 2 Pdf Truss Structural Engineering For the statics people! there’s two cases to be aware of when looking for two force members in a truss#tutorial #tutor #statics #engineering #civilengineerin. In this section, we will analyze a simplified approximation of a planar truss, called a simple truss and determine the forces the members individually support when the truss supports a load. two different approaches will be presented: the method of sections, and the method of joints.
Es 1022y Engineering Statics Structural Analysis Trusses Pdf In this section we will analyze a simplified approximation of a planar truss, called a simple truss and determine the forces the members individually support when the truss supports a load. two different approaches will be presented: the method of sections, and the method of joints. This chapter will introduce you to a special type of structure called a ‘truss’. you’ll analyze these structures more in your structures course, but for statics you will need to know how to calculate the force in each member, using two methods: method of joints and method of sections. Learn truss analysis and truss simulation from the ground up. understand types, methods, and how to simulate trusses step by step in abaqus. This document provides an overview of analyzing forces in rigid structures like trusses and frames. it discusses truss configurations and connections, and provides two methods for analyzing trusses: the method of joints and the method of sections.
Statics Notes 4 For Students Pdf Truss Force Learn truss analysis and truss simulation from the ground up. understand types, methods, and how to simulate trusses step by step in abaqus. This document provides an overview of analyzing forces in rigid structures like trusses and frames. it discusses truss configurations and connections, and provides two methods for analyzing trusses: the method of joints and the method of sections. When analysing a truss the main objective is to determine the force in each of its members for a certain set of applied loads. this allows us to check that the members can carry the loads without failing, or gives us the information we need to select the best cross section for each of the members. This lesson covers the analysis of structures, focusing on trusses, methods of joints, sections, and frames. it emphasizes understanding forces in truss members and applying equilibrium principles to determine internal forces, essential for engineering design and safety. This chapter will introduce you to a special type of structure called a ‘truss’. you’ll analyze these structures more in your structures course, but for statics you will need to know how to calculate the force in each member, using two methods: method of joints and method of sections. A truss is a structure formed by combining linear structural members in triangular patterns. the key structural characteristic of a truss is that the internal loads it carries are exclusively or primarily of an axial nature.
