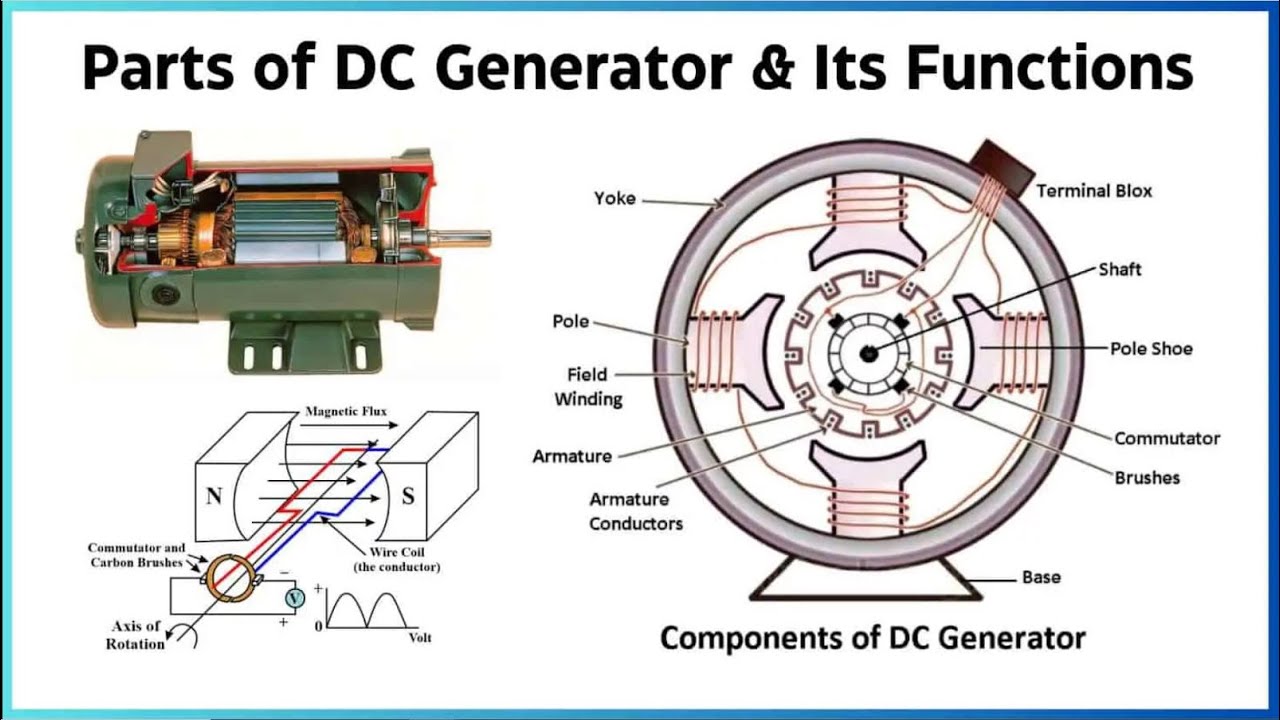

12 Essential Parts Of Dc Generator Their Functions Pdf Electrical In this article, you will learn the different parts of dc generator and their functions. all are explained with names, pictures and pdf. This document provides a comprehensive exploration of the direct current (dc) generator, covering its fundamental principles, constructional details, operating mechanisms, and practical applications.

Difference Between Dc Motor And Dc Generator Pdf Free Infoupdate Org So from the picture above, we can well understand that motor is just the opposite phenomena of a dc generator, and we can derive both motoring and generating operation from the same machine by simply reversing the ports. It outlines the main components of a dc generator, including the yoke, poles, armature core, commutator, and brushes, along with their functions. additionally, it explains the operational principles involving magnetic fields and induced electromotive force in conductive materials. • all the rotating electrical machines have many essential features from the construction point of view. for example, every rotating every electrical machine including dc machine has (i) stator (stationary parts), (ii) rotor (rotating parts), and (iii) air gap separating the stator and rotor. Dc machines are divided into two categories: (i) generator (ii) motor a generator is a machine that converts mechanical energy at its prime mover to produce electrical energy at its output.

Parts Of Dc Machine And Their Functions Pdf Design Talk • all the rotating electrical machines have many essential features from the construction point of view. for example, every rotating every electrical machine including dc machine has (i) stator (stationary parts), (ii) rotor (rotating parts), and (iii) air gap separating the stator and rotor. Dc machines are divided into two categories: (i) generator (ii) motor a generator is a machine that converts mechanical energy at its prime mover to produce electrical energy at its output. Since dc generators must produce dc current instead of ac current, a device must be used to change the ac voltage produced in the armature windings into dc voltage. • the dc compound motor is a combination of the series motor and the shunt motor. it has a series field winding that is connected in series with the armature and a shunt field that is in parallel with the armature. Dc generator is an electromechanical energy conversion device that converts mechanical power into dc electrical power through the process of electromagnetic induction. • most modern, larger generators have a stationary armature (stator) with a rotating current carrying conductor (rotor or revolving field). as the pmg rotor rotates, it produces ac voltage in the pmg stator. the regulator rectifies this voltage and applies dc to the exciter stator.

Parts Of Dc Machine And Their Functions Pdf Design Talk Since dc generators must produce dc current instead of ac current, a device must be used to change the ac voltage produced in the armature windings into dc voltage. • the dc compound motor is a combination of the series motor and the shunt motor. it has a series field winding that is connected in series with the armature and a shunt field that is in parallel with the armature. Dc generator is an electromechanical energy conversion device that converts mechanical power into dc electrical power through the process of electromagnetic induction. • most modern, larger generators have a stationary armature (stator) with a rotating current carrying conductor (rotor or revolving field). as the pmg rotor rotates, it produces ac voltage in the pmg stator. the regulator rectifies this voltage and applies dc to the exciter stator.

Parts Of Dc Generator And Their Functions At Isaac Dadson Blog Dc generator is an electromechanical energy conversion device that converts mechanical power into dc electrical power through the process of electromagnetic induction. • most modern, larger generators have a stationary armature (stator) with a rotating current carrying conductor (rotor or revolving field). as the pmg rotor rotates, it produces ac voltage in the pmg stator. the regulator rectifies this voltage and applies dc to the exciter stator.
