%f0%9f%9a%80 Forward Kinematics Of A Differential Drive Robot Using Icr Rviz Visualization %f0%9f%a4%96

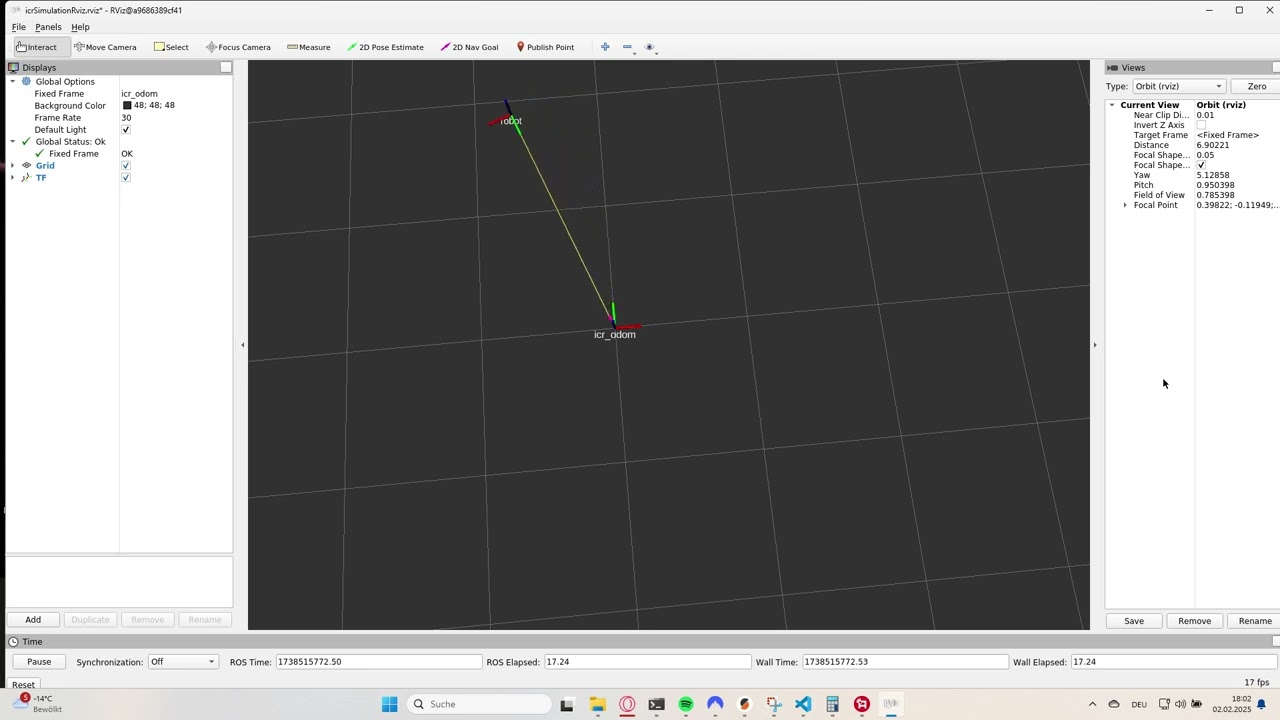

Differential Drive Robot Kinematics At Marie Renda Blog This video presents the results of simulating the forward kinematics of a differential drive robot using the instantaneous center of rotation (icr) in ros1. Forward and inverse kinematics simulators for a differential drive robot. includes a slider controlled forward kinematics visualization and a mouse click driven inverse kinematics interface, built using python and matplotlib for robotics research and education.

Differential Drive Robot Kinematics At Marie Renda Blog The purpose of forward kinematics in mobile robotics is to determine robot position and orientation based on wheels rotation measurements. to achieve that we'll create a robot kinematic model. Here, we provide a detailed kinematic analysis of the differential drive robot. we want to establish the equations that will relate the angular velocities of two wheels with the velocity of the center of the robot, and the angular velocity of robot rotation. Extend your implementation to calculate forward kinematics for all four legs of the pupper robot. create a visualization of the leg’s end effector position using rviz or another visualization tool. In summary, there are three methods discussed on how to find the forward kinematics of a robot: trigonometry, denavit hartenberg convention, and the screw theory.

Differential Drive Robot Kinematics Mathematical Modeling Robotics Extend your implementation to calculate forward kinematics for all four legs of the pupper robot. create a visualization of the leg’s end effector position using rviz or another visualization tool. In summary, there are three methods discussed on how to find the forward kinematics of a robot: trigonometry, denavit hartenberg convention, and the screw theory. This document explains the kinematics of differential drive robots (ddrs), specifically focusing on how wheel rotations relate to robot motion. we cover the mathematical relationships between wheel speeds and robot velocity, including forward and inverse kinematics equations. These equations can be used to determine the required wheel actuation to achieve the desired linear and angular velocities of the robot. the forward velocity kinematics are easily obtained from the above equations via simple algebra:. Many mobile robots use a drive mechanism known as differential drive. it consists of 2 drive wheels mounted on a common axis, and each wheel can independently being driven either forward or back ward. Inate transformations is the forward kinematics problem. given a robotic manipulator, forward kinematics answers the following question: given a speci ed angle for each joint in the manipulator, can we compute the orientation of a selected link of the manipulator relative to a xed world coordinate.

Differential Drive Robot Kinematics Mathematical Modeling Robotics This document explains the kinematics of differential drive robots (ddrs), specifically focusing on how wheel rotations relate to robot motion. we cover the mathematical relationships between wheel speeds and robot velocity, including forward and inverse kinematics equations. These equations can be used to determine the required wheel actuation to achieve the desired linear and angular velocities of the robot. the forward velocity kinematics are easily obtained from the above equations via simple algebra:. Many mobile robots use a drive mechanism known as differential drive. it consists of 2 drive wheels mounted on a common axis, and each wheel can independently being driven either forward or back ward. Inate transformations is the forward kinematics problem. given a robotic manipulator, forward kinematics answers the following question: given a speci ed angle for each joint in the manipulator, can we compute the orientation of a selected link of the manipulator relative to a xed world coordinate.
